Unit, Smart Drive: Installation: Installation

WARNING: This page is about a different variant/trim than selected.
  1. Place the Smart Drive Unit (SDU) in position on the vehicle.

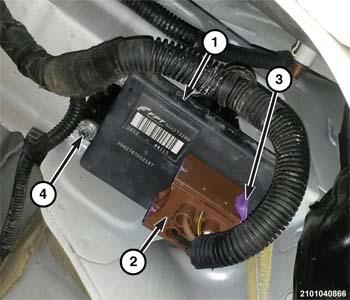

    Fig 1: SDU, Wire Harness Connector, Wire Connector Lock & Nuts
    GC0161744Courtesy of CHRYSLER GROUP, LLC
  2. Install the nuts (4) to hold the SDU (1) to the fender and tighten to the proper SPECIFICATIONS .
  3. Connect the wire harness connector (2) to the SDU (1).
  4. Engage the wire connector lock (3) on the wire connector (2).
  5. Install the Left Hand (LH) wheel house splash shield. Refer to SHIELD, SPLASH, FRONT WHEELHOUSE, INSTALLATION .
  6. Install the LH tire and wheel assembly. Refer to INSTALLATION .
  7. Connect the negative battery cable.
  8. Close the hood and road test the vehicle to verify repair.
