Shaft, Output, 2ND, 4TH, 5TH, And Reverse: Disassembly: Disassembly

WARNING: This page is about a different variant/trim than selected.

NOTE:

The thread on the retention bolt is left handed. Do not reuse the bolt.

Fig 1: Retention Bolt

Courtesy of CHRYSLER GROUP, LLC

Remove the bolt (1). Discard the bolt.

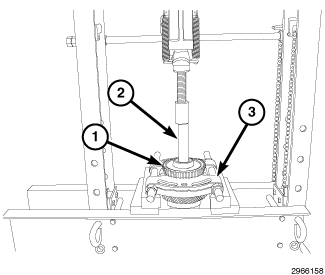

Fig 2: Removing Rear Bearing & Reverse Gear
Courtesy of CHRYSLER GROUP, LLC
Remove the rear bearing and reverse gear (1) from the shaft using (special tool #8254, Installer, Grommet) (2) and Bearing/Gear Splitter (special tool #1130, Splitter, Bearing/Gear) (3).

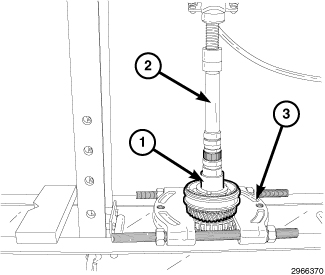

Fig 3: Removing Fifth Gear And Synchronizer Hub
Courtesy of CHRYSLER GROUP, LLC
Remove the fifth gear and synchronizer hub (1) from the output shaft (2) using (special tool #8254, Installer, Grommet) and (special tool #1130, Splitter, Bearing/Gear) (4)

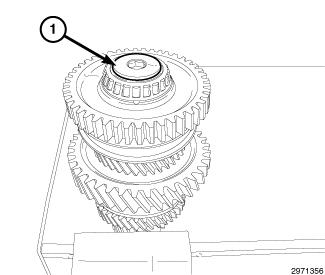

Fig 4: Installing Reverse Gear Needle Bearing
Courtesy of CHRYSLER GROUP, LLC
Remove the fifth gear needle bearing (1).

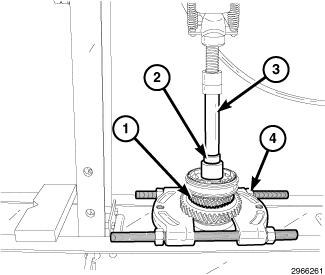

Fig 5: Spacer, Grommet Installer And Bearing Splitter
Courtesy of CHRYSLER GROUP, LLC
Remove the second/forth gear synchronizer, hub and retainer (1) using (special tool #8254, Installer, Grommet) and (special tool #1130, Splitter, Bearing/Gear) (3).

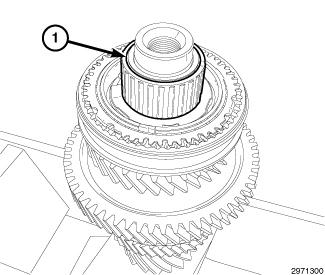

Fig 6: Second/Forth Gear Needle Bearing
Courtesy of CHRYSLER GROUP, LLC
Remove the second/forth gear needle bearing (1).

Fig 7: Front Bearing Snap Ring
Courtesy of CHRYSLER GROUP, LLC
Remove the front bearing snap ring (1).

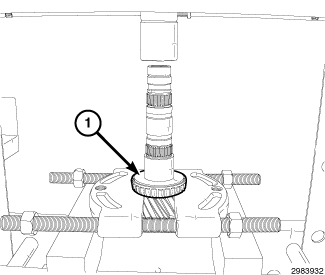

Fig 8: Removing Front Bearing
Courtesy of CHRYSLER GROUP, LLC
Remove the front bearing (1) using (special tool #1130, Splitter, Bearing/Gear).
