Reservoir, Hydraulic Circuit: Installation: Installation

WARNING: This page is about a different variant/trim than selected.

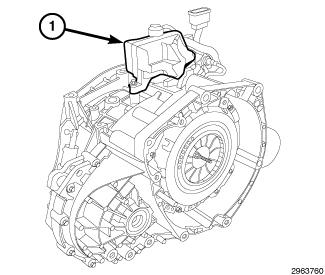

Fig 1: Hydraulic Fluid Reservoir
GC0156230Courtesy of CHRYSLER GROUP, LLC

Install a NEW  O-ring on the transmission hydraulic circuit reservoir.

  1. Install the transmission hydraulic circuit reservoir (1) to the transmission. Install the bolts and tighten to 10 N.m (89 in. lbs.).
  2. Refill the transmission hydraulic circuit reservoir with the specified fluid. Refer to CAPACITIES AND RECOMMENDED FLUIDS, SPECIFICATIONS .
  3. Connect the negative battery terminal.
  4. Install the air cleaner assembly. Refer to BODY, AIR CLEANER, INSTALLATION .
