Second Gear Power Flow
WARNING: This page is about a different variant/trim than selected.
SECOND GEAR POWER FLOW

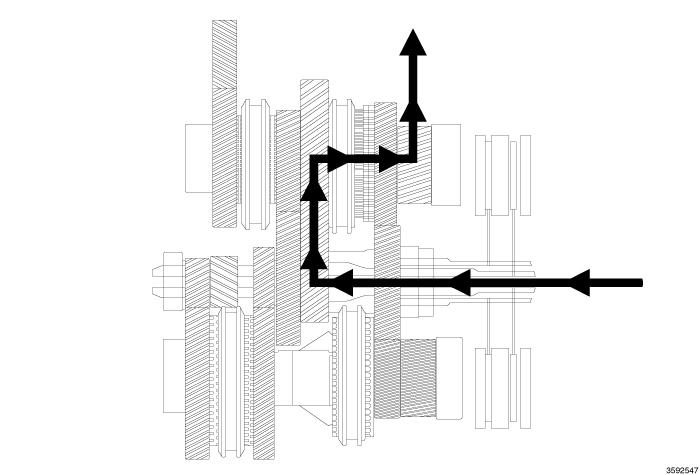

In 2nd gear, engine power is transferred from the even gear input shaft to the 2nd driven gear. The 2-4 synchronizer locks the driven gear to the 2-4-5-R output shaft. The output shaft transfers power to the differential which drive the half shafts.
