Draining, Filling And Level Check

WARNING: This page is about a different variant/trim than selected.
NOTE:

The fluid level in the C635 DDCT transaxle cannot be measured with a dip stick or any know probe. To verify the proper fill level. Drain the transaxle and fill with the proper amount of specified fluid.

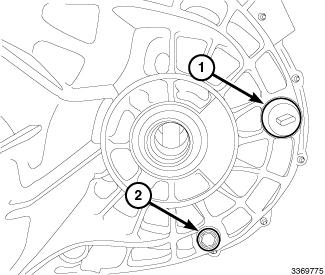

Fig 1: Fill Plug & Drain Plug
GC0155921Courtesy of CHRYSLER GROUP, LLC
  1. Raise the vehicle.
  2. Position a suitable drain pan under the transaxle.
  3. Remove the drain plug (2) and allow the fluid to completely drain from the transaxle.
  4. Allow the fluid to drain into the pan.
  5. Install the drain plug (2) tighten the plug to 27 N.m (20 ft. lbs.).
  6. Remove the fill rubber plug (1).
  7. Fill the transaxle with 1.66 liters (1.75 quarts) of Mopar BOT 350M gear lube (68092630AA quart).
  8. The correct fill level will be 6.5 mm (.025 in.) below the fill plug hole (1).
  9. Install the fill plug.
