Shift Cable Adjustment

WARNING: This page is about a different variant/trim than selected.

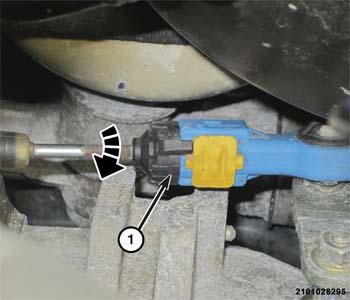

Fig 1: Unlocking Shift Cable Adjustment Clip Lock

Courtesy of CHRYSLER GROUP, LLC

Unlock the shift cable adjustment clip lock (1) by turning Counter Clockwise (CCW).

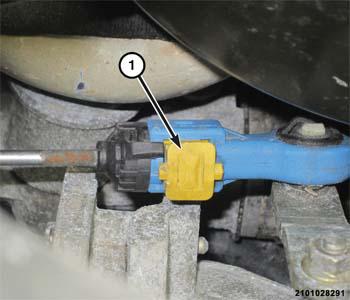

Fig 2: Shift Cable Adjustment Clip
Courtesy of CHRYSLER GROUP, LLC
Unlock the shift cable adjustment clip (1).

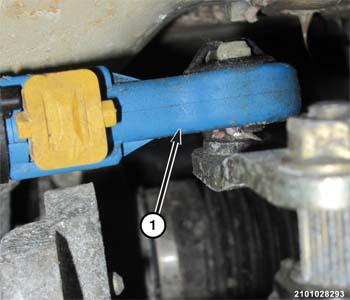

Fig 3: Manual Lever & Cable End
Courtesy of CHRYSLER GROUP, LLC
Remove the shift cable (1) from the manual park lever.

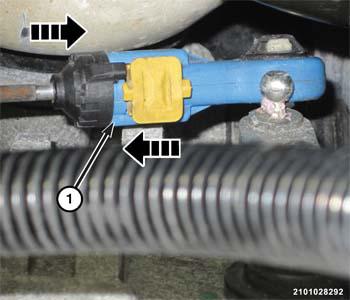

Fig 4: Checking Shift Cable For Binding
Courtesy of CHRYSLER GROUP, LLC
Move the shift cable (1) back and forth to ensure there is no binding.

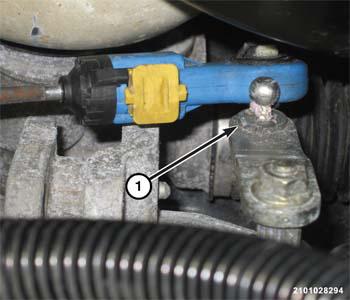

Fig 5: Manual Park Lever
Courtesy of CHRYSLER GROUP, LLC
Verify the manual park lever (1) is in Park.
Verify the shifter inside the vehicle is in Park.

Fig 6: Manual Lever & Cable End
Courtesy of CHRYSLER GROUP, LLC
Install the shift cable (1) onto the manual park lever.

Fig 7: Shift Cable Adjustment Clip
Courtesy of CHRYSLER GROUP, LLC
Lock the shift cable adjustment clip (1).

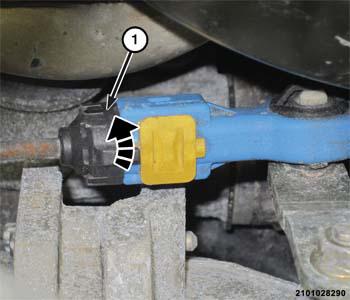

Fig 8: Shift Cable Adjustment Clip Lock
Courtesy of CHRYSLER GROUP, LLC
Turn the shift cable adjustment clip lock (1) Clockwise (CW) to lock the shift cable adjustment clip.

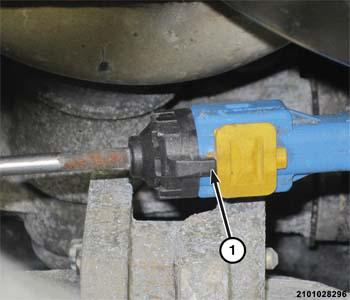

Fig 9: Shift Cable Adjustment Clip Lock In Locked Position
Courtesy of CHRYSLER GROUP, LLC
Verify the shift cable adjustment clip lock (1) is locked as shown.
Verify the vehicle starts and the shifter functions properly.
