Switch, Backup Lamp: Removal: Removal

WARNING: This page is about a different variant/trim than selected.

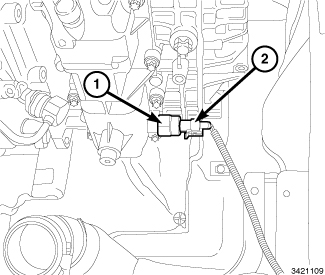

Fig 1: Backup Lamp Switch Connector & Backup Lamp Switch
GC0147963Courtesy of CHRYSLER GROUP, LLC
  1. Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.
  2. Remove the air cleaner body. Refer to BODY, AIR CLEANER, REMOVAL .
  3. Disconnect the backup lamp switch wire harness connector (2).
  4. Remove the backup lamp switch (1).
