Shaft, Output, 1ST, 3RD, And 6TH: Assembly: Assembly

WARNING: This page is about a different variant/trim than selected.

Fig 1: Installing Front Bearing

Courtesy of CHRYSLER GROUP, LLC

Install the bearing (1) using (special tool #C-3095-A, Installer, Bearing) (2).

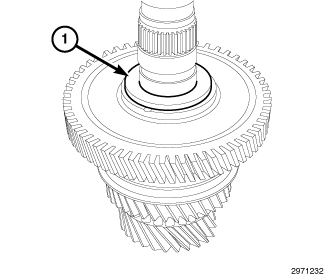

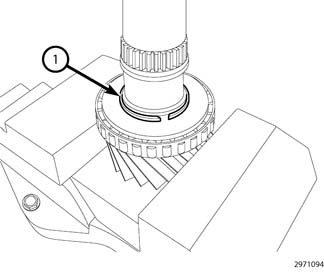

Fig 2: Front Bearing Snap Ring
Courtesy of CHRYSLER GROUP, LLC
Install the bearing snap ring.

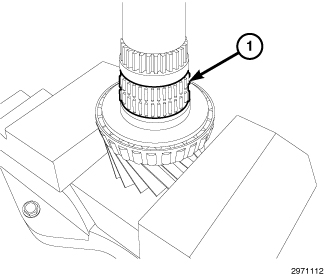

Fig 3: Second/Forth Gear Needle Bearing
Courtesy of CHRYSLER GROUP, LLC
Install the needle bearing.

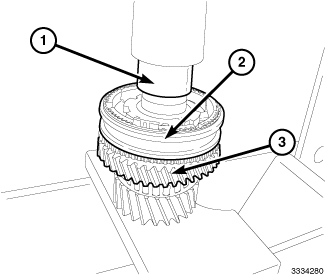

Fig 4: Installing Fourth Speed Gear, Synchronizer & Spacer
Courtesy of CHRYSLER GROUP, LLC
Install the fourth speed gear (3), the synchronizer (2) and the spacer (1) using (special tool #W-262, Installer, Bearing).

Fig 5: Special Tool #W-262
Courtesy of CHRYSLER GROUP, LLC

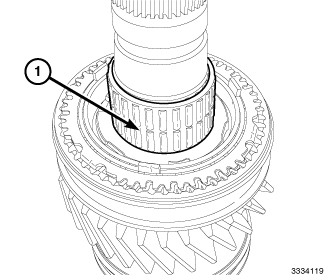

Fig 6: Needle Bearing
Courtesy of CHRYSLER GROUP, LLC
Install the needle bearing.

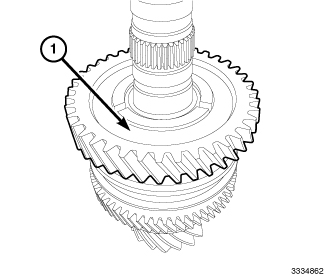

Fig 7: Third Speed Gear
Courtesy of CHRYSLER GROUP, LLC
Install the third speed gear.

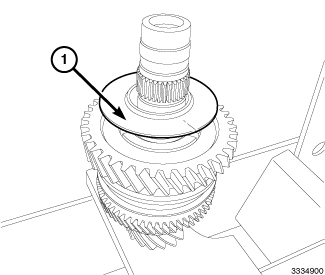

Fig 8: Third Speed Gear Shim
Courtesy of CHRYSLER GROUP, LLC
Install the third speed gear shim.

Fig 9: Installing Fifth Gear Bushing
Courtesy of CHRYSLER GROUP, LLC
Install the collar to the shaft (1) using (special tool #W-262, Installer, Bearing).

Fig 10: Special Tool #W-262
Courtesy of CHRYSLER GROUP, LLC

Fig 11: Synchronizer Mounting Bushing
Courtesy of CHRYSLER GROUP, LLC
Install the synchronizer mounting bushing.

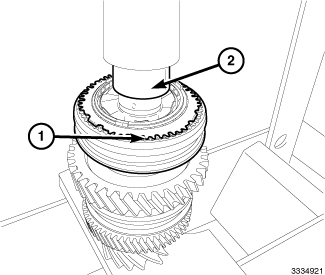

Fig 12: Synchronizer & Spacer
Courtesy of CHRYSLER GROUP, LLC
Install the synchronizer (1) and the spacer (2) using (special tool #W-262, Installer, Bearing).

Fig 13: Special Tool #W-262
Courtesy of CHRYSLER GROUP, LLC

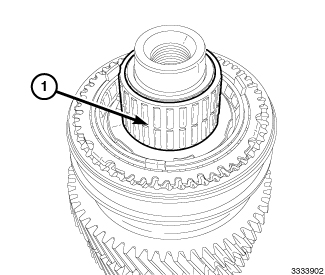

Fig 14: Needle Bearing
Courtesy of CHRYSLER GROUP, LLC
Install the needle bearing.

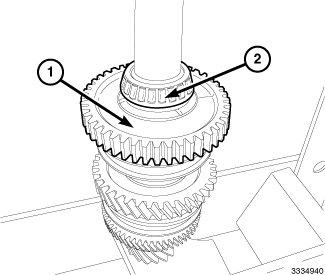

Fig 15: Reverse Gear & Rear Bearing
Courtesy of CHRYSLER GROUP, LLC
Install the reverse gear (1) and the rear bearing (2) using (special tool #W-262, Installer, Bearing).
Install a new rear bearing retention bolt, tighten to 110 N.m (81 ft. lbs.).
