Unit, Transmission Hydraulic Power: Disassembly: Disassembly

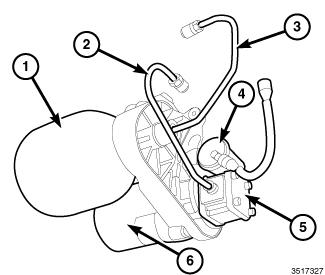

Fig 1: Hydraulic Power Unit Components

Courtesy of CHRYSLER GROUP, LLC

NOTE:

The accumulator contains freon, dispose of properly.

1. Remove the accumulator (1).
2. Remove the accumulator pipe (2).
3. Remove the high pressure oil pipe (3).
4. Remove the filter assembly. (4).
5. Remove the pump (5).
6. Remove the motor (6).
