Seal, Axle Drive Shaft: Installation: Installation

WARNING: This page is about a different variant/trim than selected.

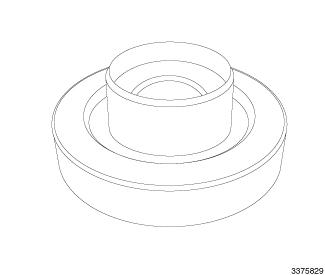

Fig 1: Flat Side Of Special Tool #10303

Courtesy of CHRYSLER GROUP, LLC

Using the flat side of (special tool #10303, Installer, Differential Oil Seal) to install the right side differential seal.

Fig 2: Special Tool #10303
Courtesy of CHRYSLER GROUP, LLC

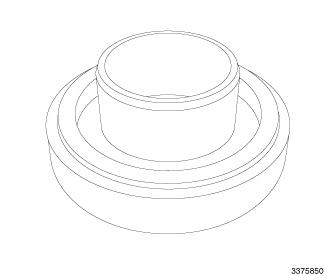

Fig 3: Raised Side Of Special Tool #10303
Courtesy of CHRYSLER GROUP, LLC
Using the raised side of (special tool #10303, Installer, Differential Oil Seal) to install the left side differential seal.

Fig 4: Special Tool #10303
Courtesy of CHRYSLER GROUP, LLC

NOTE:
Left side is shown, right side is similar.

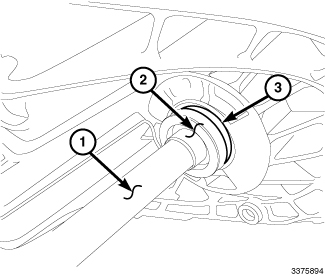

Fig 5: Seal Installer And Handle
Courtesy of CHRYSLER GROUP, LLC
Using (special tool #10303, Installer, Differential Oil Seal) (2) and (special tool #C-4171, Driver Handle, Universal) (1) install the differential seal (3) to the bearing cover side of the differential housing.
Install the half shaft. Refer to INSTALLATION .
