Relay-Seat Lumbar

Harness-Family: PDC_Rear

Color: NA

Gender: MALE

Part Number: RELAY_MICRO

Part Description: Not Available

Connector No: R0006

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count:

Fig 1: Relay-Seat Lumbar Connector End View

GCWD1006402

Courtesy of CHRYSLER

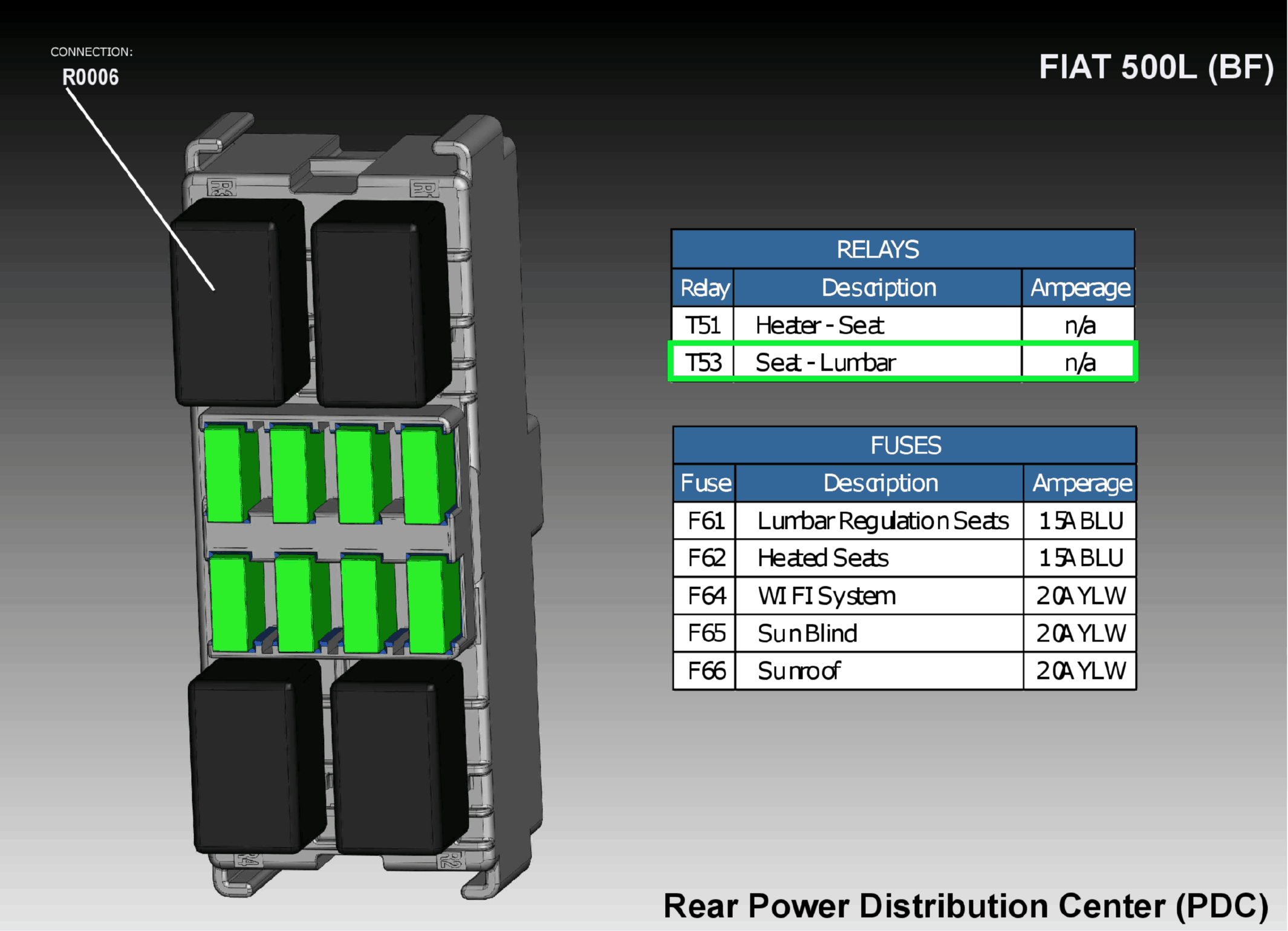

Fig 2: Relay-Seat Lumbar Component Location

GCWD1136394

Courtesy of CHRYSLER

Pin

Circuit

Wire Color

Gauge/Size

Function

Option

30

A953

RD

1.0

FUSED B(+)

N/A

85

Z912

BK

0.5

GROUND

N/A

86

F46

GY

0.35

FUSED IGNITION RUN/ACCESSORY CONTROL OUTPUT

N/A

87

A921

RD

1.0

FUSED B(+)

N/A

⁽¹⁾	Pins not listed are not used for this connector
