Connector End Views & Electrical Component Locations (2 Of 3): Relay-Heater-Seat

Harness-Family: PDC_Rear

Color: NA

Gender: MALE

Part Number: RELAY_MICRO

Part Description: Not Available

Connector No: R0005

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count:

Fig 1: Relay-Heater-Seat Connector End View

Courtesy of CHRYSLER

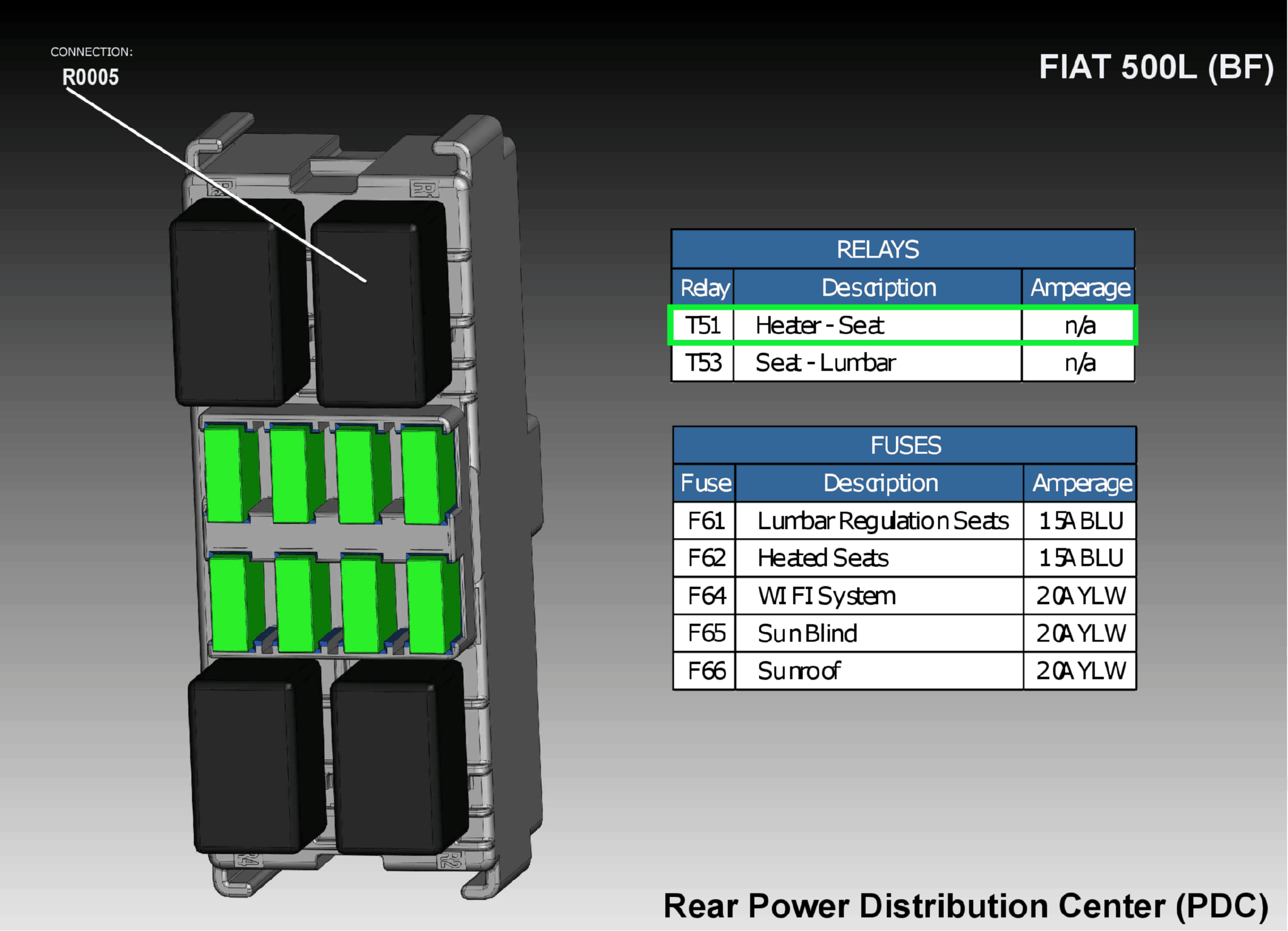

Fig 2: Relay-Heater-Seat Component Location

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

A958

0.35

FUSED B(+)

N/A

Z912

0.5

GROUND

N/A

F921

RD/YL

1.5

FUSED IGNITION RUN CONTROL OUTPUT

N/A

P693

GY/BK

1.5

HEATED SEAT MODULE SUPPLY

N/A

⁽¹⁾	Pins not listed are not used for this connector
