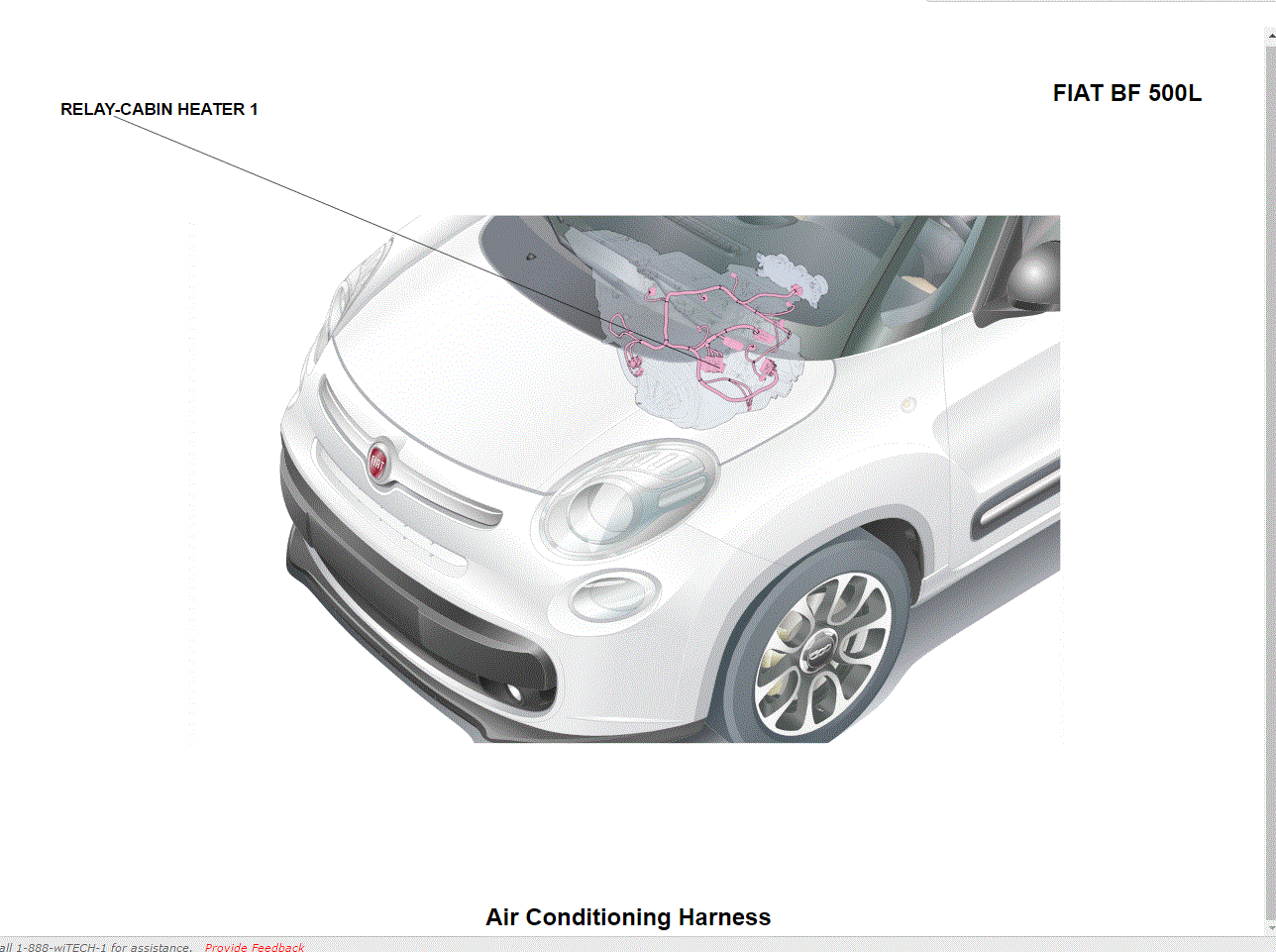

Relay-Cabin Heater 1
Harness-Family: HVAC
Color: ~~
Gender: FEMALE
Part Number: 2-953615-2
Part Description: MODULAR RELAY HLDR 50-60A - 2-953615-2
Connector No: D805A
Option: Standard
Repair Kit Part Number: Not Available
Cavity Count: 4
| Pin | Circuit | Wire Color | Gauge/Size | Function | Option | ||
|---|---|---|---|---|---|---|---|
| 1 | C361 | BR | 0.5 | CABIN HEATER RELAY 1 CONTROL | MTC | ||
| 2 | Z936 | WT/BK | 1.5 | GROUND | MTC | ||
| 3 | A283 | OR | 4.0 | FUSED B(+) | MTC | ||
| 5 | F285 | WT | 4.0 | FUSED CABIN HEATER 2 SUPPLY | MTC | ||
|
|||||||
