Fuse F65 20A

Harness-Family: PDC_Rear

Color: NA

Gender: MALE

Part Number: FUSE-CKT_BREAKER

Part Description: Not Available

Connector No: F0065

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count:

Fig 1: Fuse F65 20a Connector End View

GCWD1006305

Courtesy of CHRYSLER

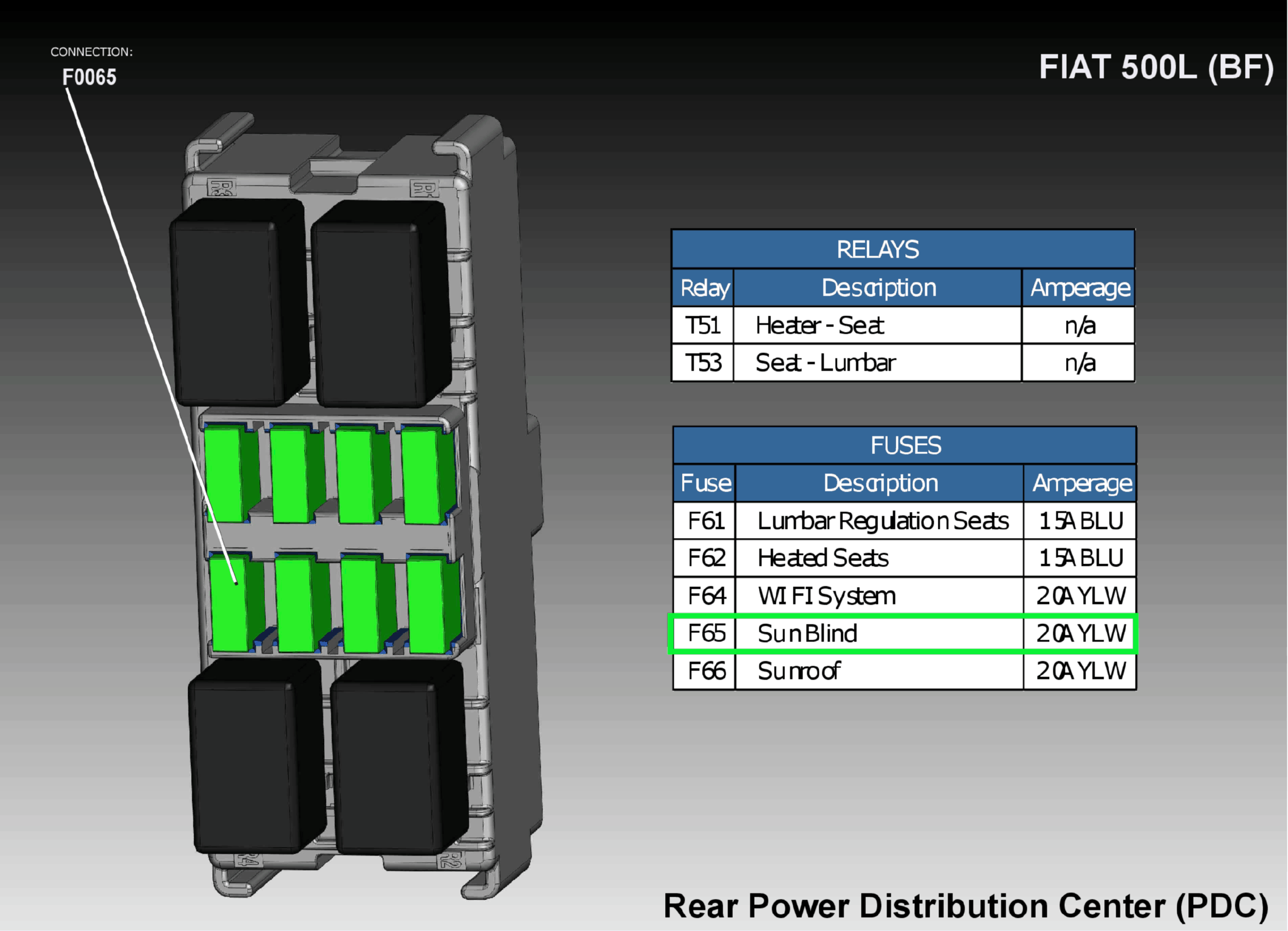

Fig 2: Fuse F65 20a Component Location

GCWD1136720

Courtesy of CHRYSLER

Pin

Circuit

Wire Color

Gauge/Size

Function

Option

1

A953

RD

4.0

FUSED B(+)

N/A

2

A940

RD/VT

1.5

FUSED B(+)

N/A

⁽⁾	Pins not listed are not used for this connector
