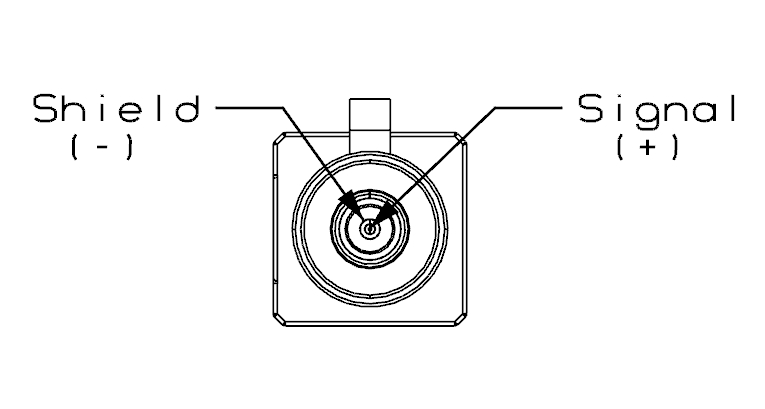

Connector End Views & Electrical Component Locations (1 Of 3): Antenna-Cell
Harness-Family: Body_Rear
Color: YELLOW
Gender: FEMALE
Part Number: 1/13053/90
Part Description: Not Available
Connector No: D5900B
Option: Standard
Repair Kit Part Number: Not Available
Cavity Count: 1
| Pin | Circuit | Wire Color | Gauge/Size | Function | Option | ||
|---|---|---|---|---|---|---|---|
| 1 | D8 | BK | 0.81 | GPS ANTENNA SIGNAL | VP2 BASE RADIO | ||
| 1 | D106 | BK | 0.81 | SATELLITE RADIO ANTENNA SIGNAL | VP2 RADIO WITH SDAR/NAV | ||
|
|||||||
