Airbag-Driver Squib 1

Harness-Family: Steering_Wheel

Color: LIGHT GREEN

Gender: FEMALE

Part Number: PPI0001461

Part Description: SRS CONNECTOR AK2 FERRITE

Connector No: D6663A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: 2

Fig 1: Airbag-Driver Squib 1 Connector End View

GCWD1006458

Courtesy of CHRYSLER

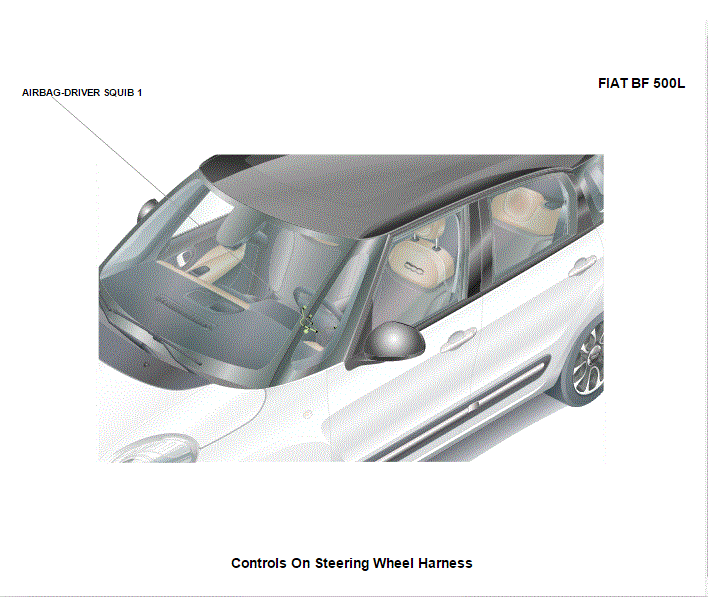

Fig 2: Airbag-Driver Squib 1 Component Location

GCWD1136512

Courtesy of CHRYSLER

Pin

Circuit

Wire Color

Gauge/Size

Function

Option

1

R45

DB

0.5

DRIVER SQUIB 1 LINE 1

STANDARD

2

R43

WT

0.5

DRIVER SQUIB 1 LINE 2

STANDARD

⁽⁾	Pins not listed are not used for this connector
