Actuator-RECIRCULATION Door

Harness-Family: HVAC

Color: BLACK

Gender: FEMALE

Part Number: 1355082-1

Part Description: MICRO QUADLOCK SOCKET HSG+ RETAINER KIT

Connector No: D10A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: 6

Fig 1: Actuator-Recirculation Door Connector End View

Courtesy of CHRYSLER

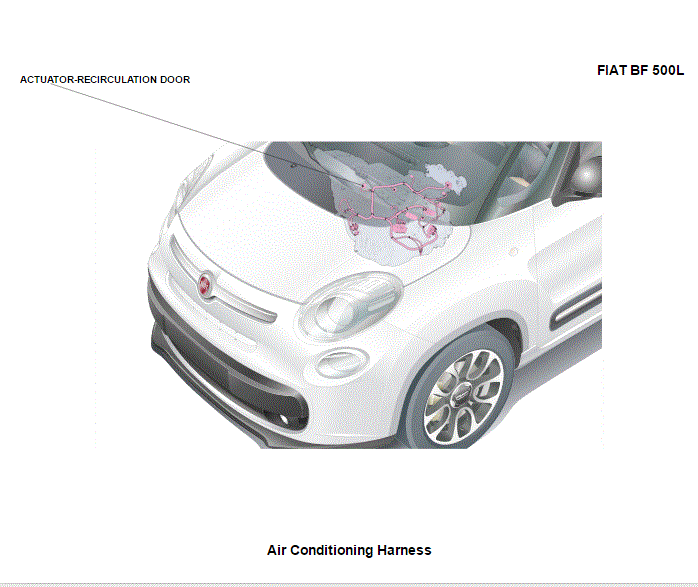

Fig 2: Actuator-Recirculation Door Component Location

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

C268

WT/RD

0.35

RECIRCULATION DOOR DRIVER

MTC

C68

LG/WT

0.35

RECIRCULATION DOOR COMMON DRIVER

MTC

⁽⁾	Pins not listed are not used for this connector
