Actuator-Mode Door-Front

Harness-Family: HVAC

Color: BLACK

Gender: FEMALE

Part Number: 1355082-1

Part Description: MICRO QUADLOCK SOCKET HSG+ RETAINER KIT

Connector No: D8A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: 6

Fig 1: Actuator-Mode Door-Front Connector End View

Courtesy of CHRYSLER

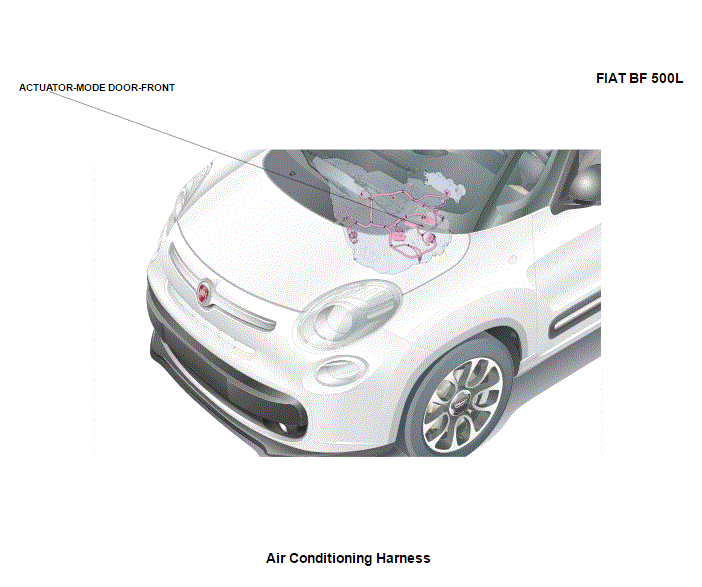

Fig 2: Actuator-Mode Door-Front Component Location

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

C121

BK/VT

0.35

SENSOR GROUND

ATC

C235

GY/LG

0.35

MODE DOOR SIGNAL

ATC

C807

WT/LG

0.35

5 VOLT SUPPLY

ATC

C266

GY/BK

0.35

MODE DOOR DRIVER

ATC

C66

0.35

MODE DOOR COMMON DRIVER

ATC

⁽⁾	Pins not listed are not used for this connector
