Airbag-Side Curtain-Left

Harness-Family: Body_Rear

Color: BLACK

Gender: FEMALE

Part Number: 1/11859/99

Part Description: Not Available

Connector No: D3083A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: 2

Fig 1: Airbag-Side Curtain-Left Connector End View

Courtesy of CHRYSLER

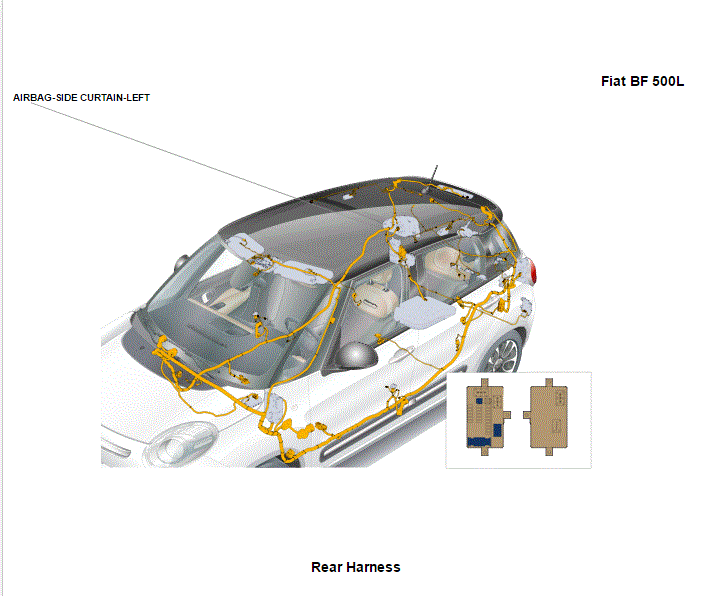

Fig 2: Airbag-Side Curtain-Left Component Location

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

0.5

LEFT CURTAIN SQUIB 1 LINE 1

STANDARD

0.5

LEFT CURTAIN SQUIB 1 LINE 2

STANDARD

⁽⁾	Pins not listed are not used for this connector
