Airbag-Passenger Squib 1

Harness-Family: Airbag_Pass

Color: LIGHT GREEN

Gender: FEMALE

Part Number: PPI0001461

Part Description: SRS CONNECTOR AK2 FERRITE

Connector No: D6665A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: 2

Fig 1: Airbag-Passenger Squib 1 Connector End View

Courtesy of CHRYSLER

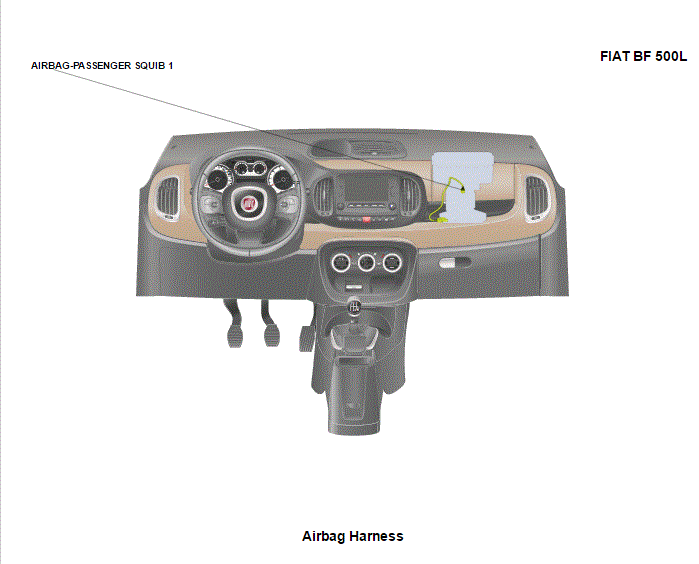

Fig 2: Airbag-Passenger Squib 1 Component Location

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

R44

DB/BR

0.5

PASSENGER SQUIB 1 LINE 1

STANDARD

R42

DB/OR

0.5

PASSENGER SQUIB 1 LINE 2

STANDARD

⁽⁾	Pins not listed are not used for this connector
