Switch, Brake Fluid Level: Installation: Installation

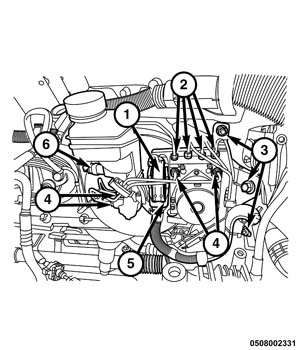

Fig 1: Identifying Integrated Control Unit Components
GC0158829Courtesy of CHRYSLER GROUP, LLC
  1. Insert brake fluid switch into reservoir until it is firmly in place.
  2. Connect the wiring harness connector (6) to the switch.
