Guide, Sunroof, Glass: Removal: Removal

Fig 1: Sunroof Front Glass

Courtesy of CHRYSLER GROUP, LLC

Open the sunshade fully.
Remove the headliner. Refer to HEADLINER, REMOVAL .
Remove the front sunroof glass (2). Refer to GLASS, SUNROOF, FRONT, REMOVAL .

Fig 2: Wind Deflector & Arm
Courtesy of CHRYSLER GROUP, LLC
Release the sunroof wind deflector (2) by pulling forward on the arm (1), releasing it from the wind deflector mount.
Repeat on the opposite side.

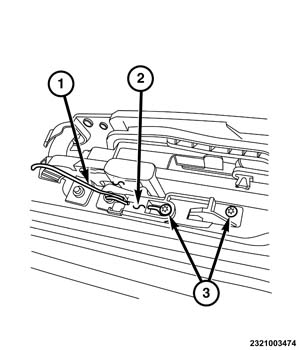

Fig 3: Wind Deflector Mount & Fasteners
Courtesy of CHRYSLER GROUP, LLC

NOTE:
Left side shown in illustration, right side typical.
Remove fasteners (3) from the wind deflector mount (2).
Remove the mount (2) from the guide.

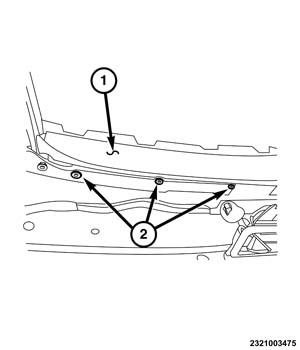

Fig 4: Wind Deflector Guard & Fasteners
Courtesy of CHRYSLER GROUP, LLC
Remove the fasteners (2) from the left side of the wind deflector guard (1).
Repeat on the opposite side and remove guard (1).
Use the sunroof switch to move the sunroof glass guides (1) to the full closed position.
NOTE:
Sunshade must remain in the full open position.

Fig 5: Bowden/Drive Cables, Sunroof Sunshade, Slides & Guides
Courtesy of CHRYSLER GROUP, LLC
Remove the sunroof sunshade (1). Refer to SUNSHADE, SUNROOF, REMOVAL .

Fig 6: Sunroof Motor And Module Unit
Courtesy of CHRYSLER GROUP, LLC
Remove the sunroof motor (3). Refer to MOTOR, SUNROOF, REMOVAL .

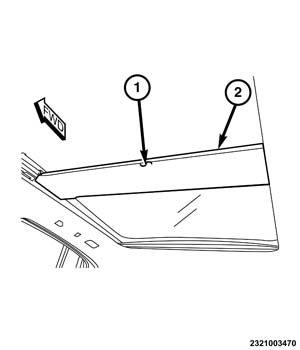

Fig 7: Identifying Sunroof Crossmember Trim
Courtesy of CHRYSLER GROUP, LLC
With the use of trim stick (special tool #C-4755, Trim Stick) or equivalent, release the retainers along the front edge (1) of the sunroof crossmember trim (2), lowering it slightly.
Release the retainers on the rear of the sunroof crossmember trim (2).

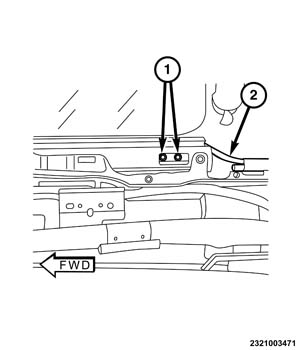

Fig 8: Mechanism Tube & Fasteners
Courtesy of CHRYSLER GROUP, LLC
Remove the fasteners (1) securing mechanism tube (2) to the sunroof glass guide.

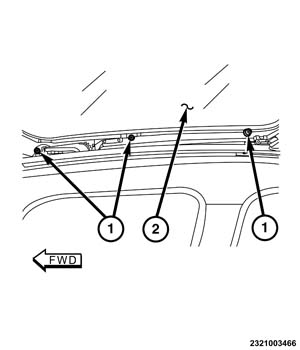

Fig 9: Rear Sunroof Glass Guide Fasteners & Sunroof Glass Guide
Courtesy of CHRYSLER GROUP, LLC
With a grease pencil or equivalent, mark the location of the sunroof glass guide (2) rear fasteners (1).
Remove the rear sunroof glass guide fasteners (2) from the sunroof frame.
NOTE:
Right side shown in illustration, left side typical.

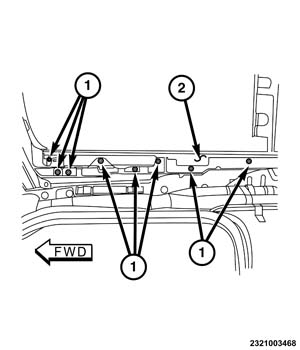

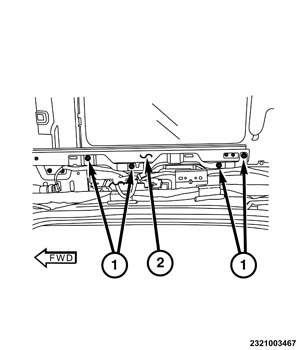

Fig 10: Sunroof Glass Guide & Fasteners
Courtesy of CHRYSLER GROUP, LLC
With a grease pencil or equivalent, mark the location of the sunroof glass guide (2) front fasteners (1).
Remove the front sunroof glass guide fasteners (1) from the sunroof frame.
NOTE:
Right side shown in illustration, left side typical.
Slide the sunroof guide (2) forward and then lift up.

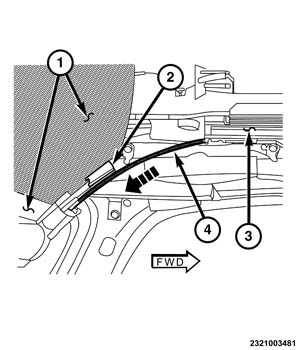

Fig 11: Sunroof Glass Guides & Bowden Cable
Courtesy of CHRYSLER GROUP, LLC
Continue pulling the forward sunroof guide (1) forward until the bowden cable (2) is completely removed.
Remove the sunroof glass guide from the vehicle.
