Prop, Gas: Removal: Removal

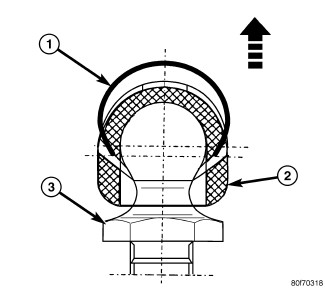

Fig 1: Removing Support Cylinder Retaining Clip

Courtesy of CHRYSLER GROUP, LLC

1 - RETAINING CLIP

2 - BALL SOCKET

3 - BALL STUD

Using a suitable device, support the seat in the forward position.

NOTE:

Lift the clips only enough to release the ball studs.

Fig 2: Retaining Clip, Tool, Ball Stud & Socket

Courtesy of CHRYSLER GROUP, LLC

1 - BALL SOCKET

2 - RETAINING CLIP

3 - FLAT BLADED TOOL

4 - BALL STUD

Using a small flat bladed tool, or equivalent, release the retaining clips while pulling the ball socket away from the ball stud.

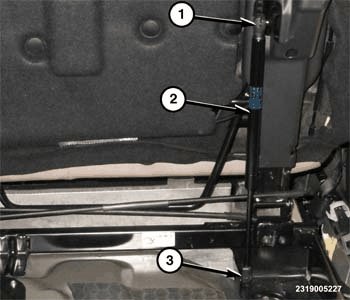

Fig 3: Support Cylinder, Seat Riser & End
Courtesy of CHRYSLER GROUP, LLC

CAUTION:
Do not pull the supports from the middle while removing.
Pulling at the end (1) only, remove the support cylinder (2) from the seat side ball socket.
Pulling at the end only, remove the support cylinder (2) from the seat riser (3) ball socket.
