Bezel, Instrument Cluster: Removal: Removal

Fig 1: Diagnostic Terminal, Steering Column Closeout & Fasteners

Courtesy of CHRYSLER GROUP, LLC

Remove the steering column closeout panel. Refer to COVER, STEERING COLUMN OPENING, REMOVAL .

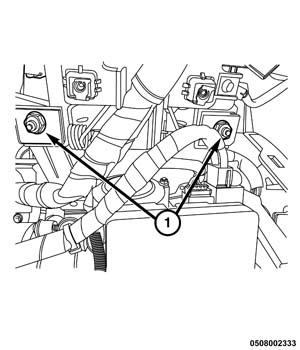

Fig 2: Steering Column Mounting Fasteners
Courtesy of CHRYSLER GROUP, LLC
Remove the two lower steering column mounting fasteners (1).
Support the steering column with an appropriate device.

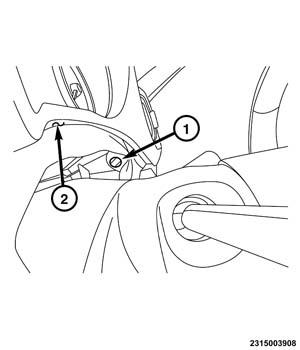

Fig 3: Retainer & Fabric
Courtesy of CHRYSLER GROUP, LLC
With the use of a small flat bladed tool or equivalent, remove the center from the retainer (1) located above the steering column.
With the use of trim remover (special tool #C-4829A, Remover, Trim) or equivalent, remove the retainer (1) securing the cluster bezel and fabric (2) to the instrument panel.
Repeat on the opposite side.

Fig 4: Instrument Cluster Bezel
Courtesy of CHRYSLER GROUP, LLC
Using a Trim Stick (special tool #C-4755, Trim Stick) or equivalent, release the cluster bezel (1) retaining clips.
Remove the cluster bezel from the vehicle.
