Shield, Splash, Front Wheelhouse: Removal: Removal

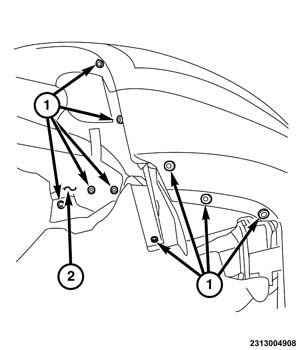

Fig 1: Front Splash Shield & Fasteners

Courtesy of CHRYSLER GROUP, LLC

Right side shown in illustration, left side typical.

1. Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
2. Remove the wheel. Refer to REMOVAL .
3. Remove the front splash shield fasteners (1) from the front splash shield (2).

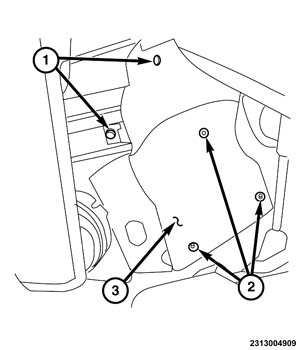

   Fig 2: Splash Shield, Retainers & Fasteners

   Courtesy of CHRYSLER GROUP, LLC
4. Remove the two retainers (1) from the splash shield (3).
5. Remove the three fasteners (2) securing the splash shield (3) to the vehicle.
6. Remove the splash shield (3) from the wheelhouse.
