Panel, Cowl Trim, Side: Removal: Removal

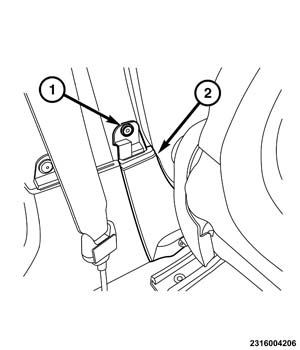

Fig 1: Cowl Trim Side Panel & Retainer

Courtesy of CHRYSLER GROUP, LLC

Remove the lower B-pillar trim panel. Refer to PANEL, B-PILLAR TRIM, LOWER, REMOVAL .
With the use of (special tool #C-4829A, Remover, Trim) or equivalent, remove the retainer (1) from the rear of the cowl trim side panel (2).

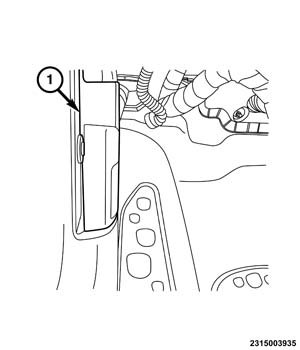

Fig 2: Hood Release Handle
Courtesy of CHRYSLER GROUP, LLC

NOTE:
Hood release handle is on driver side only.
With the use of a trim stick (special tool #C-4755, Trim Stick) or equivalent, remove the hood release handle (1).

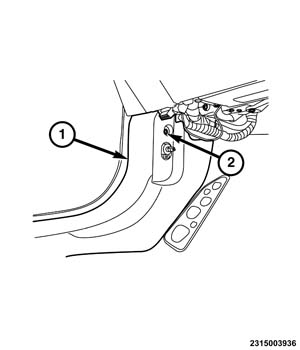

Fig 3: Driver Side Cowl/Scuff Trim Panel
Courtesy of CHRYSLER GROUP, LLC
Remove the fastener (2) from the cowl trim side panel (1).

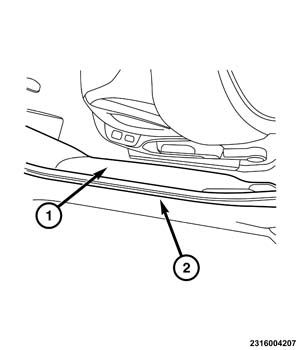

Fig 4: Door Opening Weatherstrip & Cowl Trim Side Panel
Courtesy of CHRYSLER GROUP, LLC
Partially remove the door opening weatherstrip (2) along the cowl trim side panel (1).
With the use of a trim stick (special tool #C-4755, Trim Stick) or equivalent, release the inner retainers of the cowl trim side panel (1).
Remove the cowl trim side panel (1) from the vehicle.
