Front Door

  1. Disconnect the negative battery cable.
  2. Remove the door trim panel. Refer to PANEL, DOOR TRIM, REMOVAL .

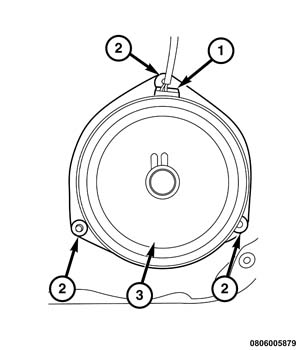

    Fig 1: Speaker, Connector & Rivets
    GC0159042Courtesy of CHRYSLER GROUP, LLC
  3. Disconnect the speaker electrical connector (1) from the speaker (3).
  4. Drill out the speaker rivets (2).
  5. Remove the front door speaker.
