Audio/Video/Entertainment/Connectivity - (Service Information) - 500L: Speaker: Description: Description

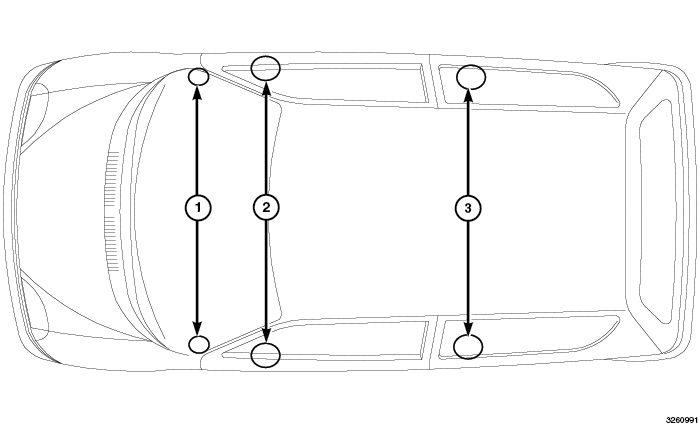

Fig 1: Tweeter Speakers, Mid-Woofer Speakers & Rear Speakers

Courtesy of CHRYSLER GROUP, LLC

The base equipment speaker system includes speakers in six locations.

• Two 165 mm mid-woofers (2) located in the front door panels
• Two 38 mm tweeters (1) located near the door handle
• Two 165 mm full-range speakers (3) located in the rear door panels

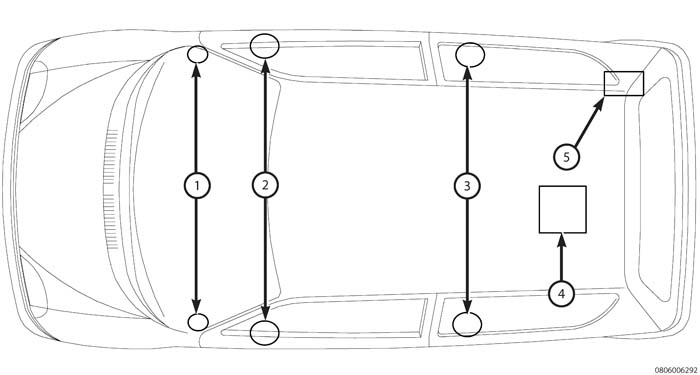

Fig 2: Identifying Premium Speaker System Components

Courtesy of CHRYSLER GROUP, LLC

The Premium Beats Audio speaker system includes speakers in seven locations.

• Two 165 mm mid-woofers (2) located in the front door panels
• Two 38 mm tweeters (1) located near the door handle
• Two 165 mm full-range speakers (3) located in the rear door panels
• Subwoofer (4) located in luggage compartment.
• Eight channel power amplifier (5) located in the right side quarter trim panel.
