B140C-11-Rear Right Audio Speaker Output - Circuit Short To Ground - Premium: Notes

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article  .

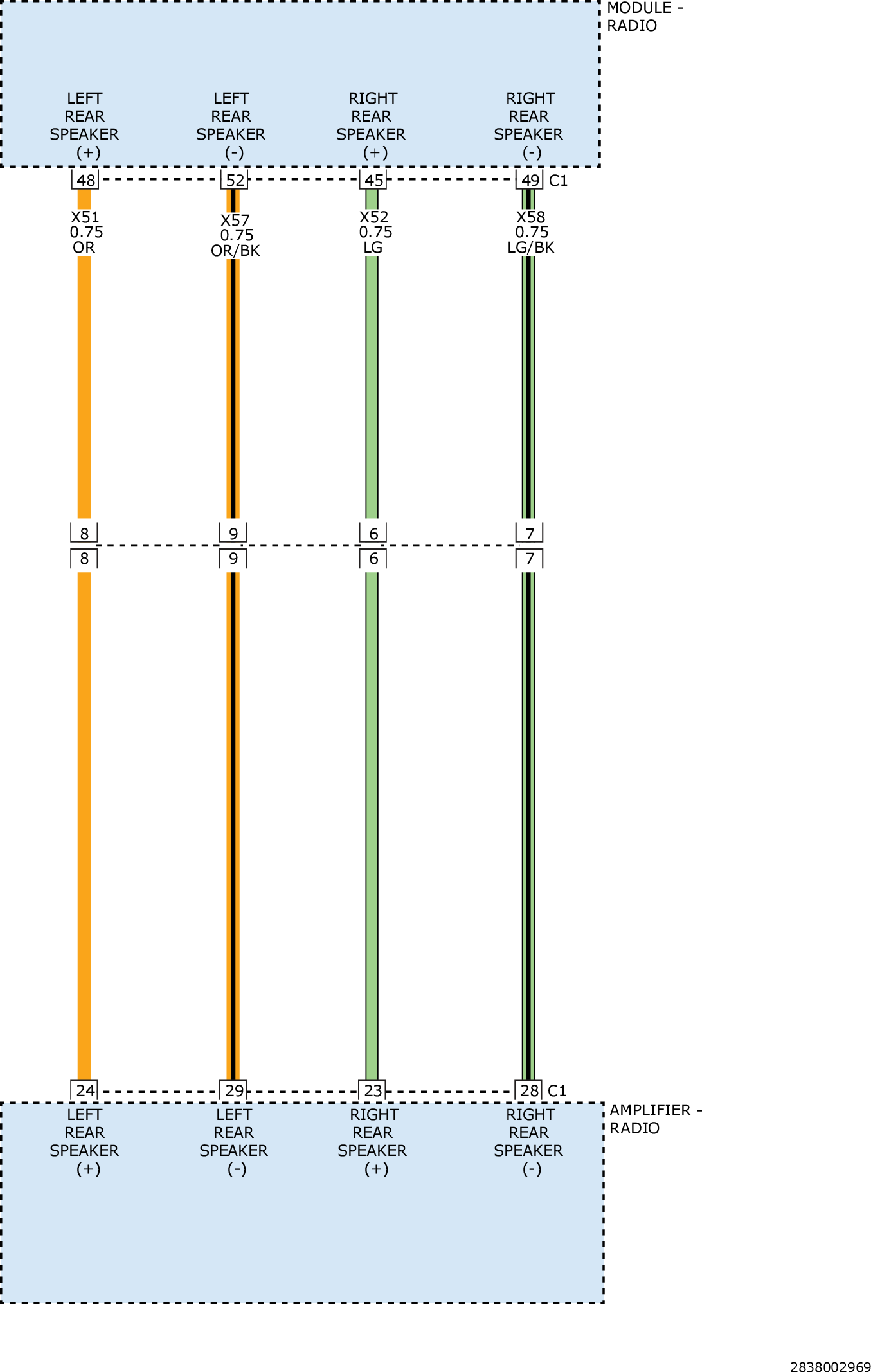

Fig 1: Amplified Rear Door Speakers Circuit Diagram

Courtesy of CHRYSLER GROUP, LLC
