Sixth Gear Power Flow
WARNING: This page is about a different variant/trim than selected.

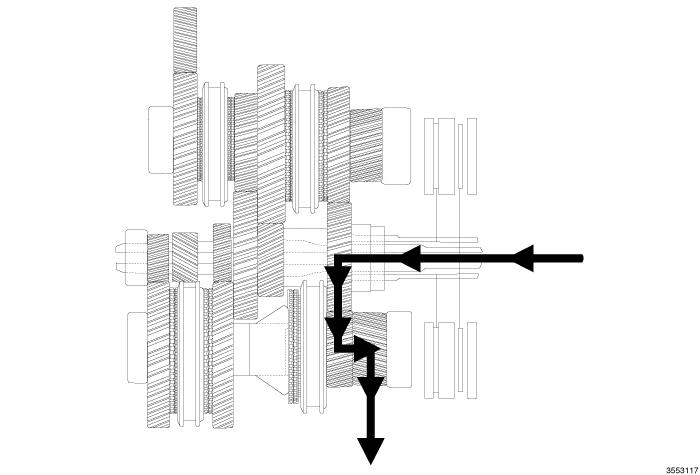

SIXTH GEAR POWER FLOW
In 6th gear, engine power is transferred from the even gear input shaft to the 6th driven gear. The 6th gear synchronizer locks the driven gear to the 1-3-6 output shaft. The output shaft transfers power to the differential which drive the half shafts.
