Differential, Transaxle: Disassembly: Disassembly

WARNING: This page is about a different variant/trim than selected.

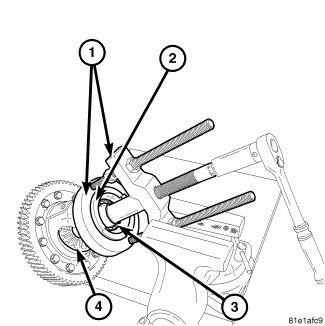

Fig 1: Remove Pinion Side Bearing
GC0122423Courtesy of CHRYSLER GROUP, LLC
NOTE:

This procedure will require the removal of the bearing cage and rollers. New bearings must be used upon reassembly.

  1. Using (special tool #C-293-PA, Puller, Press) (1), (special tool #8353, Blocks, Adapter) (2), and (special tool #9676, Adapter Plug) (3) remove the pinion side differential bearing.

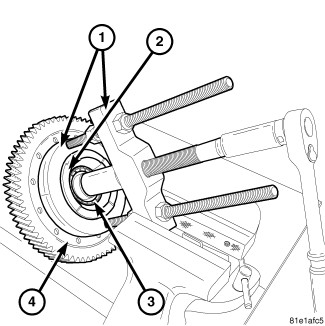

    Fig 2: Remove Ring Gear Side Bearing
    GC0122424Courtesy of CHRYSLER GROUP, LLC
  2. Using (special tool #C-293-PA, Puller, Press) (1), (special tool #8353, Blocks, Adapter) (2), and (special tool #9676, Adapter Plug), remove the ring gear side differential bearing.
  3. Remove the ring gear bolts.
  4. Remove the ring gear.
