Valve Body: Removal: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Drain the transmission fluid. Refer to FLUID, STANDARD PROCEDURE .
  2. Remove the engine cover. Refer to AIR CLEANER, REMOVAL .
  3. Remove the battery tray. Refer to TRAY, BATTERY, REMOVAL .
  4. Remove the electric cooling fan. Refer to FAN, COOLING, REMOVAL .

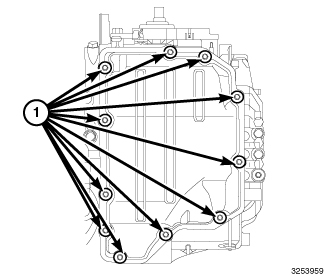

    Fig 1: Side Cover Bolts
    GC0153111Courtesy of CHRYSLER GROUP, LLC
  5. Remove the side cover bolts (1).
  6. Loosen the side cover by tapping with a plastic hammer, remove the side cover.
    Fig 2: Solenoid/Speed Sensor Connectors
    GC0153112Courtesy of CHRYSLER GROUP, LLC
  7. Disconnect the wire harness from the clamps.
  8. Disconnect the solenoid connectors and the speed sensor connectors (1).
    Fig 3: Oil Temperature Sensor, Clamp & Bolt
    GC0153115Courtesy of CHRYSLER GROUP, LLC
  9. Remove the oil temperature sensor bolt (1) and clamp (2). Remove the sensor (3) from the valve body.
    Fig 4: Speed Sensor Connector
    GC0153116Courtesy of CHRYSLER GROUP, LLC
  10. Remove the speed sensor connector (1) from the solenoid clamp.

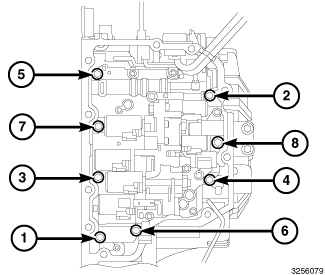

    Fig 5: Valve Body Bolts Removal Sequence
    GC0153117Courtesy of CHRYSLER GROUP, LLC
  11. Remove the valve body bolts evenly in the sequence shown in illustration.

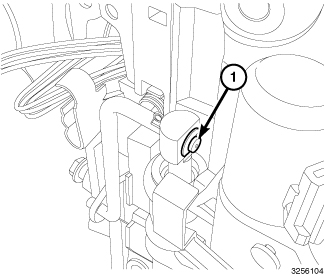

    Fig 6: Linkage Rod Clip
    GC0153118Courtesy of CHRYSLER GROUP, LLC
  12. Remove the clip from the linkage rod (1).
  13. Disconnect the linkage rod from the valve body and remove from the transmission.
