Left Side

WARNING: This page is about a different variant/trim than selected.

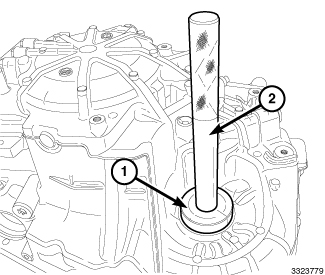

Fig 1: Installing Left Side Seal
GC0153272Courtesy of CHRYSLER GROUP, LLC
  1. Install the seal using (special tool #10316, Installer, Differential Oil Seal) (1) and the (special tool #C-4171, Driver Handle, Universal) (2).
  2. Install the halfshaft. Refer to INSTALLATION .
  3. Fill the transmission. Refer to FLUID, STANDARD PROCEDURE .
  4. Road test vehicle and inspect for leaks.
