Relay, Auto Shut Down: Description: Description

WARNING: This page is about a different variant/trim than selected.

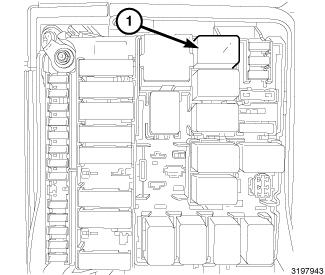

Fig 1: Automatic Shutdown (ASD) Relay
GC0153074Courtesy of CHRYSLER GROUP, LLC

The 5-pin, 12-volt, Automatic Shutdown (ASD) relay (1) is located in the Power Distribution Center (PDC). Always refer to the label on the power distribution center cover for relay location.
