Camshaft, Engine: Description: Description
WARNING: This page is about a different variant/trim than selected.

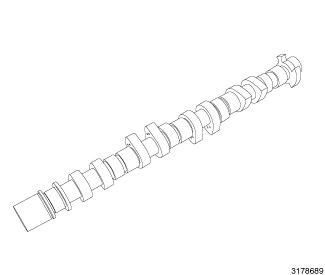

The 1.4L engine uses a Single Over Head Camshaft (SOHC) to provide valve actuation but the camshaft is in the standard position of an exhaust camshaft in a Double Over Head Camshaft (DOHC) engine. The camshaft has five bearing journal surfaces and three cam lobes per cylinder. The camshaft is built up on a hollow tube with cam lobes, bearing journals and end caps pressed into position. The front end cap includes the camshaft sprocket mounting and front bearing journal with end play thrust walls. The rear end cap is the camshaft position sensor pick-up wheel and also drives the vacuum pump.
