Pod, Switch: Installation: Lower

WARNING:

To avoid serious or fatal injury on vehicles equipped with airbags, disable the Supplemental Restraint System (SRS) before attempting any steering wheel, steering column, airbag, seat belt tensioner, impact sensor or instrument panel component diagnosis or service. Disconnect and isolate the battery negative (ground) cable, then wait two minutes for the system capacitor to discharge before performing further diagnosis or service. This is the only sure way to disable the SRS. Failure to take the proper precautions could result in accidental airbag deployment.

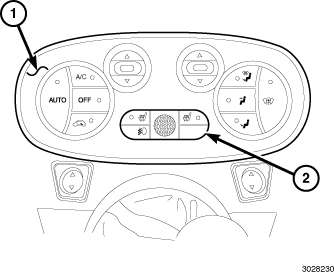

Fig 1: HVAC Control Panel & Lower Switch Pod

Courtesy of CHRYSLER GROUP, LLC

Position the lower instrument panel switch pod (2) on the back of the HVAC control panel (1).
Install and tighten the screws that secure the switch pod to the control panel.
Install the HVAC control panel. Refer to CONTROL, A/C AND HEATER, INSTALLATION .
Connect the 12 volt negative battery cable.
Power up the high voltage system. Refer to ELECTRIC VEHICLE CONTROL SYSTEM, STANDARD PROCEDURE .
