P0131-00-O2 Sensor 1/1 Circuit Low: Notes

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article  .

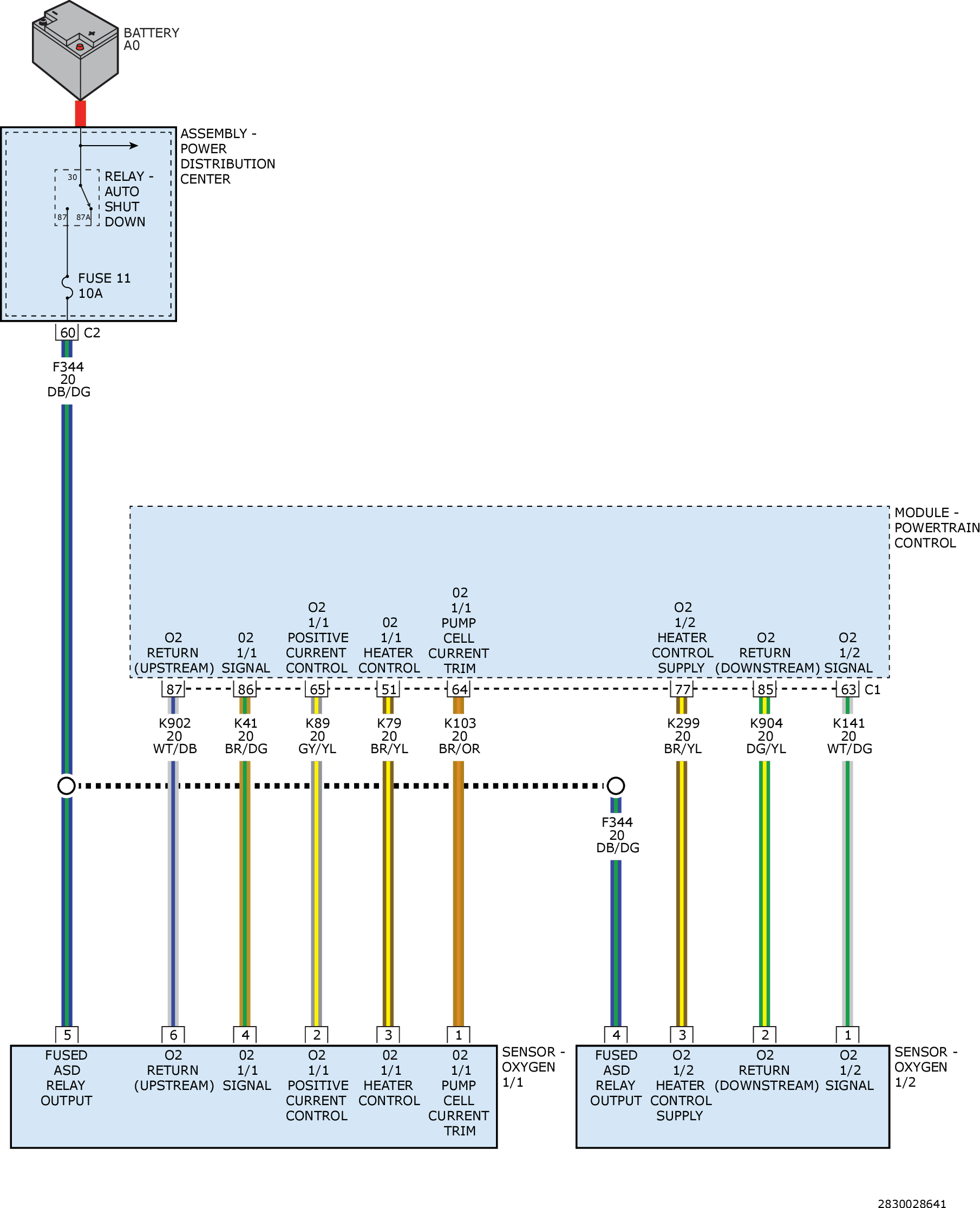

Fig 1: Oxygen Sensors Circuit Diagram

Courtesy of CHRYSLER GROUP, LLC
