P0112-00-Intake Air Temperature Sensor 1 Circuit Low: Notes

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article  .

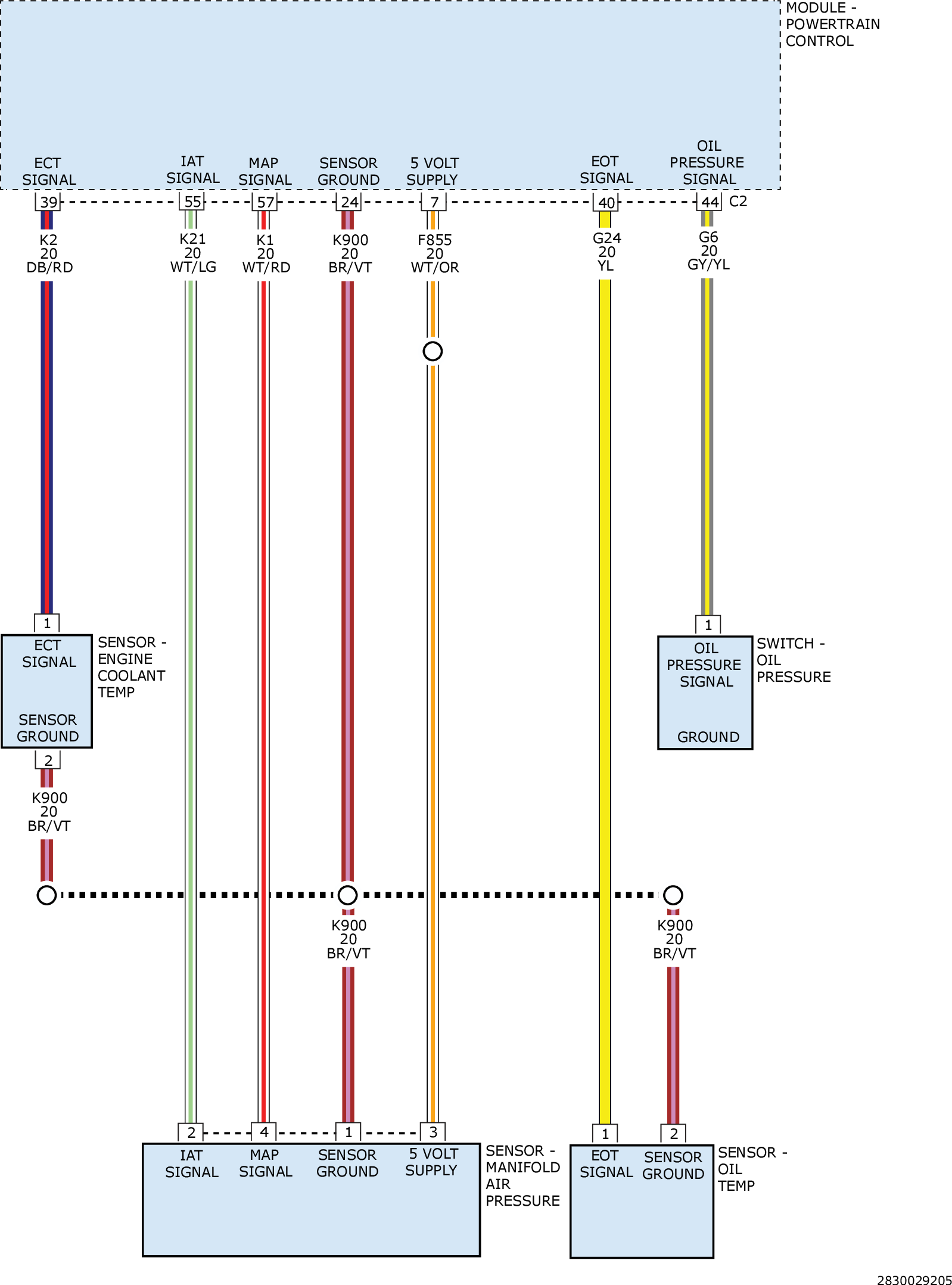

Fig 1: MAP, Oil Temp, Oil Pressure & Coolant Temp Sensors Circuit Diagram

Courtesy of CHRYSLER GROUP, LLC
