Insulator, Engine Mount, Right: Removal: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the engine cover.
  2. Remove the air cleaner assembly. Refer to BODY, AIR CLEANER, REMOVAL  .
  3. Drain the coolant from the coolant reservoir.
    Fig 1: Pressurized Coolant Bottle, Reservoir Hose & Coolant Reservoir Bolts
    GC0156417Courtesy of CHRYSLER GROUP, LLC
  4. Disconnect the reservoir hose (3).
  5. Remove the coolant reservoir bolts (5) and set the bottle aside.
  6. Remove the wiring harness retainer from the top of the engine mount.
  7. Raise and support the vehicle. Refer to HOISTING .
  8. Remove the belly pan. Refer to BELLY PAN, REMOVAL .
  9. Lower the vehicle to a workable height.
  10. Support the powertrain with a suitable jack. Lift the engine slightly to unload the isolator.

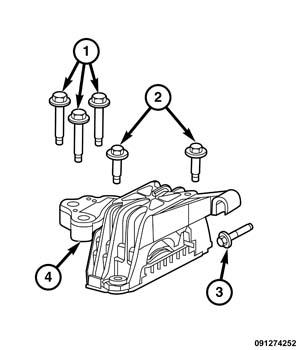

    Fig 2: Engine Mount & Bolts
    GC0157492Courtesy of CHRYSLER GROUP, LLC
  11. Remove the three mount (4) to timing cover bolts (1).
  12. Remove the two mount (4) to frame bolts (2).
  13. Loosen, but do not remove  the mount (4) to strut tower bolt (3).
  14. Remove the engine mount (4).
