Valve Body: Disassembly: Disassembly

WARNING: This page is about a different variant/trim than selected.

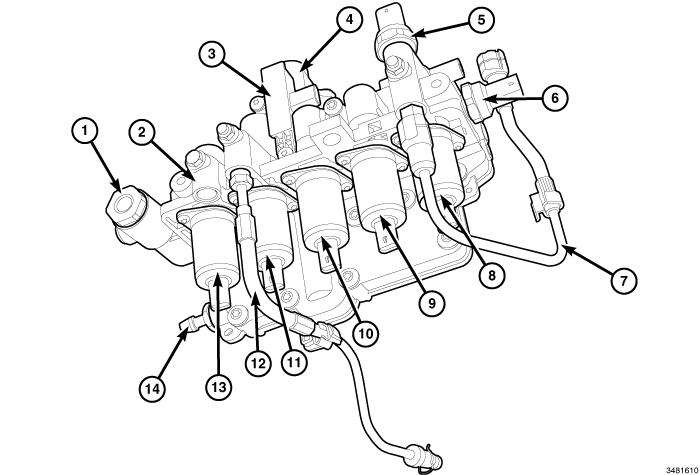

Fig 1: Valve Body Components
GC0155943Courtesy of CHRYSLER GROUP, LLC
  1. Remove the two fasteners and remove the shift selector position sensor (3).
  2. Remove the even gear Concentric Slave Cylinder (CSC) pressure sensor (5).
  3. Remove the line pressure sensor (6).
  4. Release the retention clip and remove the odd gear CSC oil outlet pipe. (7).
  5. Remove the odd gear CSC oil outlet pipe (12).
  6. Remove the fasteners and remove the solenoids (8, 9, 10, 11 and 13).
