Shaft, Output, 1ST, 3RD, And 6TH: Disassembly: Disassembly

WARNING: This page is about a different variant/trim than selected.

NOTE:

The thread on the retention bolt is left handed. Do not reuse the bolt.

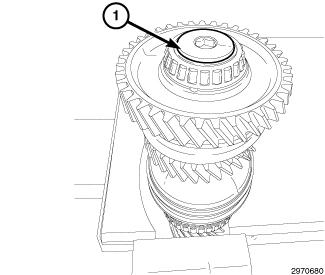

Fig 1: Left Hand Thread Retainer

Courtesy of CHRYSLER GROUP, LLC

Remove the left hand thread retainer (1). Discard the bolt.

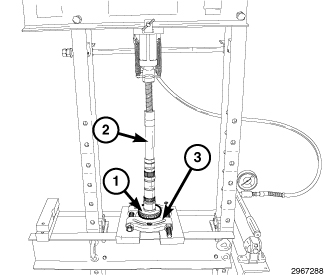

Fig 2: Removing Bearing & First Gear
Courtesy of CHRYSLER GROUP, LLC
Remove the bearing (1) and the first gear (2) using (special tool #8254, Installer, Grommet) (3) and (special tool #1130, Splitter, Bearing/Gear) (4).

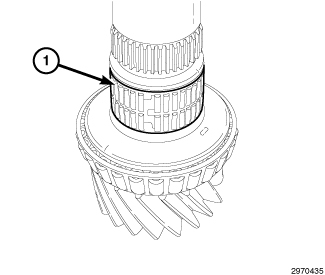

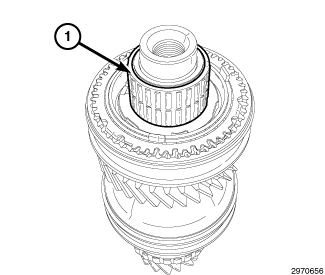

Fig 3: Needle Bearing
Courtesy of CHRYSLER GROUP, LLC
Remove the first gear needle bearing (1).

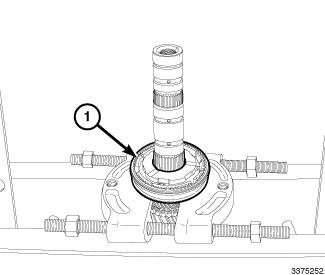

Fig 4: Removing Third Gear, Synchronizer & Retainer
Courtesy of CHRYSLER GROUP, LLC
Remove the third gear, third gear synchronizer and retainer (1) from the shaft using (special tool #8254, Installer, Grommet) and (special tool #1130, Splitter, Bearing/Gear).

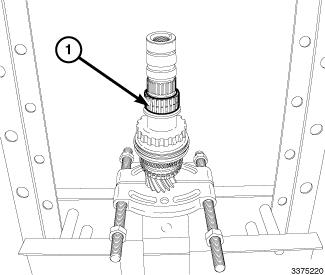

Fig 5: Removing Needle Bearing
Courtesy of CHRYSLER GROUP, LLC
Remove the needle bearing (1).

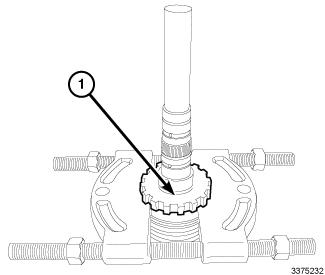

Fig 6: Removing Parking Pawl Sprag
Courtesy of CHRYSLER GROUP, LLC
Remove the parking pawl sprag (1) using (special tool #8254, Installer, Grommet) and (special tool #1130, Splitter, Bearing/Gear).

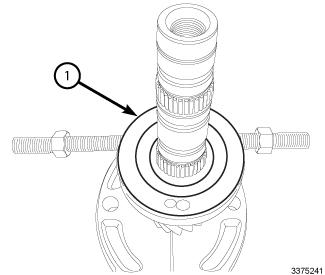

Fig 7: Plastic Washer
Courtesy of CHRYSLER GROUP, LLC
Remove the plastic washer (1).

Fig 8: Removing Synchronizer Hub Assembly And Spacer
Courtesy of CHRYSLER GROUP, LLC
Remove the synchronizer hub assembly and spacer (1) using (special tool #1130, Splitter, Bearing/Gear).

Fig 9: Needle Bearing
Courtesy of CHRYSLER GROUP, LLC
Remove the needle bearing (1).

Fig 10: Front Bearing Snap Ring
Courtesy of CHRYSLER GROUP, LLC
Remove the front bearing snap ring (1).

Fig 11: Removing Front Bearing
Courtesy of CHRYSLER GROUP, LLC
Remove the front bearing (1) using (special tool #8254, Installer, Grommet) (2) and (special tool #1130, Splitter, Bearing/Gear) (3).
