Heater, Transmission/Differential: Installation: Installation

WARNING: This page is about a different variant/trim than selected.
CAUTION:

To prevent damage, the power cord must be secured in its retainer clips, and not positioned so it could contact linkages or exhaust manifolds.

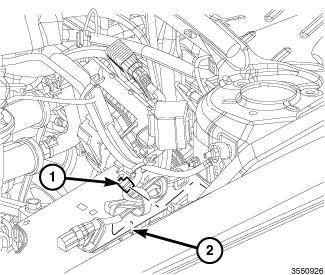

Fig 1: Block/Transmission Heater Wiring Harness At Fender
GC0156116Courtesy of CHRYSLER GROUP, LLC
  1. Connect the block / transmission heater wiring harness at the fender.

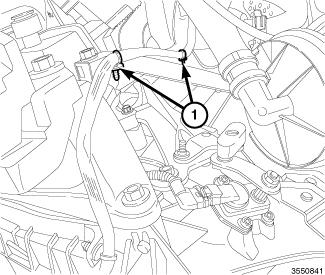

    Fig 2: Support Brace
    GC0155917Courtesy of CHRYSLER GROUP, LLC
  2. Attach the wiring harness to the support brace.

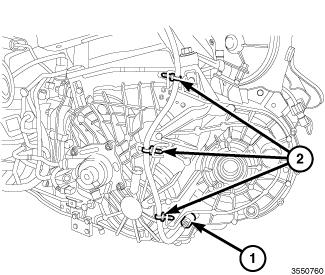

    Fig 3: Transmission Heater Power Cord
    GC0156173Courtesy of CHRYSLER GROUP, LLC
  3. Raise the vehicle.
  4. Thoroughly clean the transmission case heater cavity.
  5. Install transmission heater element to the transmission case.
  6. Attach the wiring harness to the transaxle case (2).
  7. Connect the power cord plug to engine block heater.
  8. Connect the power cord plug to transmission heater (1).
  9. Install the belly pan.
