Seat Back, Front: Disassembly: Disassembly

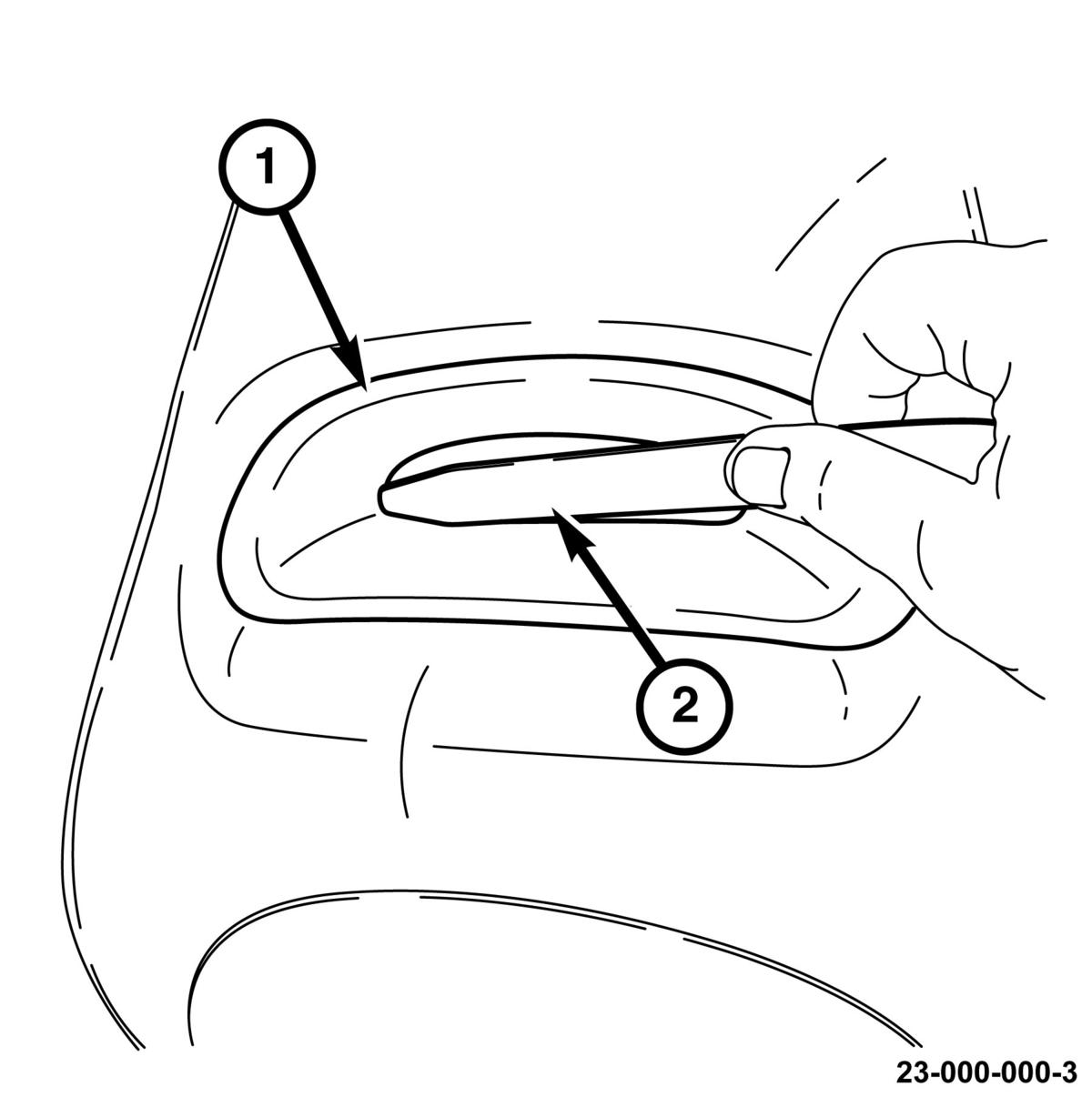

Fig 1: Trim Stick & Rear Bezel
GC0157699Courtesy of CHRYSLER GROUP, LLC
  1. Remove the seat back frame, cushion and cover as an assembly from the front seat. Refer to SEAT BACK, FRONT, REMOVAL .
    NOTE:

    Models equipped with the round head restraint proceed to step  7.

  2. On vehicles equipped with the seat back bezel, with the use of trims stick C-4775 or equivalent (1), push inward and twist to release the front portion of bezel from the rear bezel (1).
  3. Remove front portion of the bezel.
    Fig 2: Fasteners & Rear Bezel
    GC0157603Courtesy of CHRYSLER GROUP, LLC
  4. From the front of the seat, remove the four fasteners (1) that mount the rear bezel (2) to the seat back frame.
    Fig 3: J-Channel Upper & Lower Portions
    GC0157916Courtesy of CHRYSLER GROUP, LLC
  5. Disconnect the lower headrest J-channel by sliding the upper portion (1) and lower portion (2) in opposite directions.
  6. Repeat on the upper headrest J-channel.
    Fig 4: Arm Rest & Circlip
    GC0157920Courtesy of CHRYSLER GROUP, LLC
  7. On models so equipped, with the armrest (1) in the up position, firmly squeeze seat material inward far enough to expose the circlip (2).
  8. With the use of a small flat bladed tool or equivalent, remove the circlip (2).
    Fig 5: Recliner Bezel, Fastener & Upper Recliner Handle
    GC0157902Courtesy of CHRYSLER GROUP, LLC
  9. Remove the fastener (2) from the upper seat back recliner bezel (1).
  10. Slide the upper recliner handle (3) through the bottom of the bezel (1).
  11. Untuck the seat cushion foam from behind the bezel mounting bracket.
    Fig 6: Zippers & Hook And Loop Fasteners
    GC0157658Courtesy of CHRYSLER GROUP, LLC
  12. Lift the lower corners of the rear of the seat cover to release the hook and loop fasteners (2).
  13. Unzip the zippers (1) on both sides of the seat back cover.
  14. Unhook lower J-channel on bottom of seat cover.
    Fig 7: Seat Cushion And Cover & Air Bag Harness
    GC0157596Courtesy of CHRYSLER GROUP, LLC
  15. Lift seat cushion and cover up together (1) far enough to expose the air bag wiring connector located on the rear of the seat back frame.
  16. Disconnect air bag wiring.
  17. Guide the air bag harness (2) out through the opening in the seat cover.
    NOTE:

    Vehicles not equipped with the round head restraint continue to step 21.

    Fig 8: Head Restraint & Two Head Restraint Sleeves
    GC0153212Courtesy of CHRYSLER GROUP, LLC
  18. Remove the head restraint (1) from the seat back. Press the release tab on the two head restraint sleeves (2 and 3) and pull the head restraint straight upward.
    Fig 9: Removing Headrest Sleeves
    GC0138103Courtesy of CHRYSLER GROUP, LLC
  19. Using a small flat bladed tool (4) or equivalent, release the head restraint sleeve retaining tabs through the openings (2) in the seat back frame.
  20. Using a soft hammer (3) or equivalent, remove the head restraint sleeves.
    Fig 10: Hog Rings, Seat Bottom Cover & Seat Bottom Cushion
    GC0153149Courtesy of CHRYSLER GROUP, LLC
  21. Remove the seat back cover and cushion from the seat back frame.
  22. Remove the hog rings (2) that secure the seat back cover (1) to the seat back cushion (3) and remove the cover.
  23. If necessary, remove and discard the heated seat pad from the seat back cushion. Refer to PAD, HEATER, REMOVAL .
  24. If necessary, remove the air bag from the seat back frame. Refer to AIR BAG, SEAT, REMOVAL .
