Fog Lamp Alignment

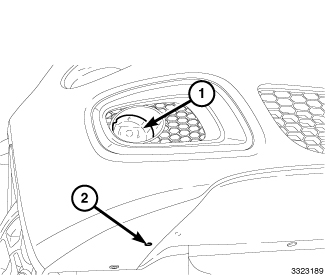

The fog lamp adjustment screw for Sport models is accessed through clearance holes (2) near the right and left outboard ends of the front fascia. The Lounge models do not have clearance holes and the adjustment screws must be accessed by reaching up from under the fascia. A properly aimed front fog lamp (1) will project a pattern on the alignment screen 100 millimeters (4 inches) below the fog lamp centerline and straight ahead of the lamp.
- Turn the fog lamps ON.
- Insert a screwdriver through the clearance hole (Sport models) or reach around the underside of the fascia to rotate the vertical adjustment screw on each lamp to adjust the beam height as required.
