Clutch Slave Cylinder - Installation






INSTALLATION

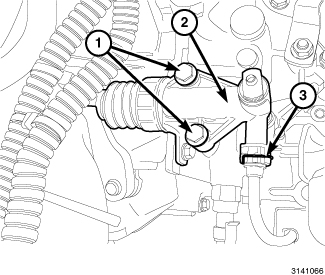

1. Install the slave cylinder (2) to the transmission.
2. Install the slave cylinder bolts (1) and tighten to 20 Nm (15 ft. lbs.).

NOTE: Verify O-ring is on hydraulic line.

3. Install the hydraulic line to the slave cylinder. Install the clip (3).
4. Bleed the hydraulic system. Service and Repair.
5. Install the battery tray Battery Tray - Installation.
