Valve Body Wiring Harness - Removal

REMOVAL, VALVE BODY WIRING HARNESS

1. Remove the Transmission Control Module (TCM) Transmission Control Module - Removal.
2. Remove the transmission side cover Valve Body - Removal.




3. Disconnect the wire harness from the clamps.

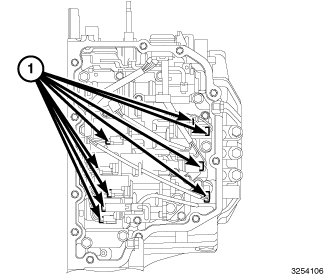

4. Disconnect the solenoid connectors and the speed sensor connectors (1).

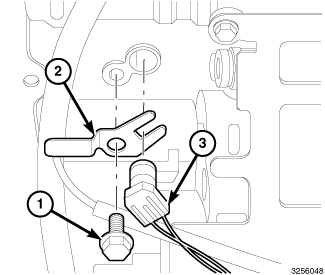

5. Remove the oil temperature sensor bolt (1) and clamp (2). Remove the sensor (3) from the valve body.

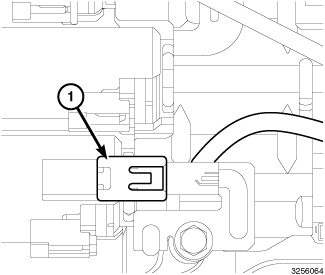

6. Remove the speed sensor connector (1) from the solenoid clamp.

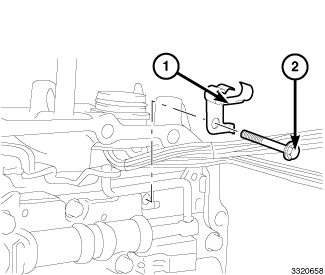

7. Remove the wiring harness loom fastener (2) and remove loom (1).

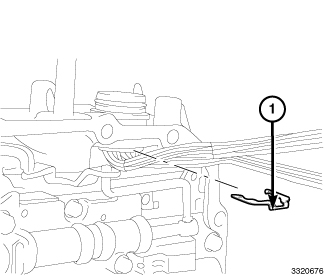

8. Remove the wiring harness connector retaining clip (1) and remove the wiring harness from the transmission.

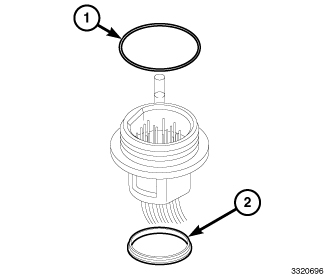

9. Remove and discard the O-ring (1) and the gasket (2) from the connector.
