Upper

REMOVAL





1. Position the column tilt lever at the full-downward position.

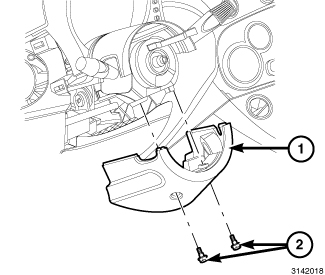

2. Remove the two screws (2) attaching the lower shroud (1) to the upper shroud. After removing the screws, unclip the shrouds from each other by applying hand pressure along the seams where the shrouds connect on the sides, then remove the lower shroud.

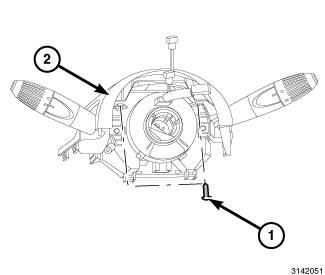

3. Remove 2 mounting bolts (1) holding the upper column shroud (2) to the column.
4. Pull the upper shroud (2) up evenly off of the column assembly and remove from the vehicle.
