Rear

REMOVAL






NOTE: Before proceeding, Warning Brakes - Caution .

1. Raise and support the vehicle Maintenance.

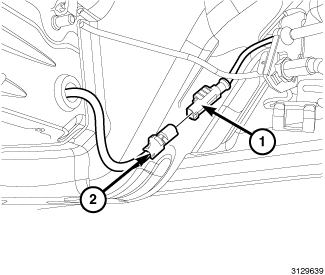

2. Disconnect the wheel speed sensor cable connector (1) at the body wiring harness connector (2).





3. Separate the wheels speed sensor cable from all retainers and clips.
4. Remove the screw (2) fastening the wheel speed sensor head in the spindle assembly. Remove the sensor from the vehicle.
