Backup Lamp Switch - Removal

REMOVAL





1. Raise the vehicle.
2. Remove the belly pan if equipped Belly Pan - Removal.

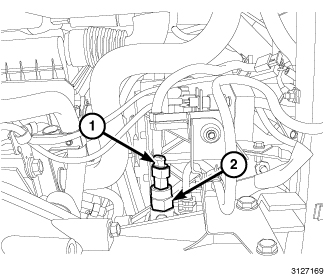

3. Disconnect the reverse lamp switch connector (1).
4. Remove the switch (2) from the transaxle.
