Cowl Panel Cover - Removal

REMOVAL





1. Open the hood.
2. Remove the cowl screen trim covers (1).
3. Remove the wiper arms, Service and Repair.

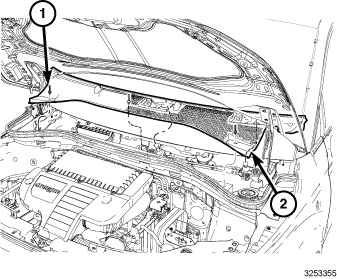

4. Using a small pick tool, remove the three push fasteners (1) from the cowl screen (2).
5. Pull up on the cowl screen to disengage the snap retainers.
6. Disconnect the washer hose from the nozzle.
7. Remove the cowl screen (2).

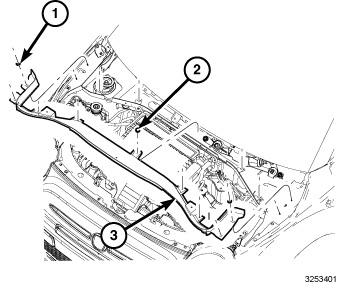

8. Remove the two speed nuts (1). Repeat for the opposite side.
9. Remove the five fasteners (1) across the cowl plenum (3).
10. Remove the cowl plenum (3).
